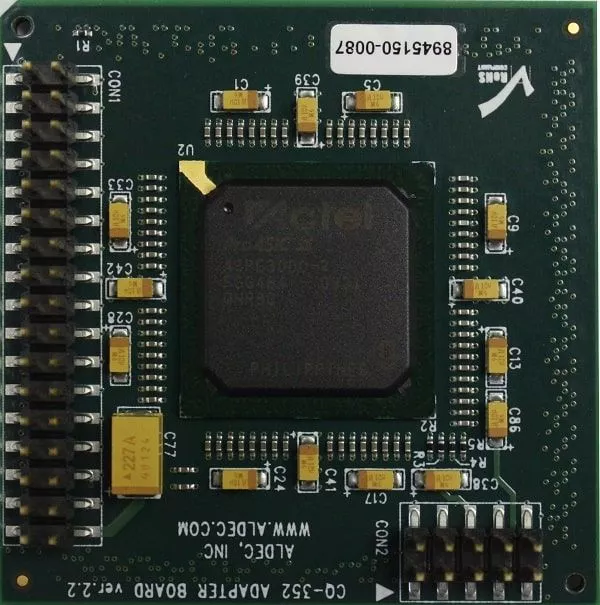

Product number: ACT-H3Ki-CQ352
Manufacturer: Aldec
Description
The power supply and footprint compatibility with the RTAX chip combined with the compact size are the main advantages of the ACT-H3Ki-CQ352 adapter board. In addition to the standard option of powering the adapter via CQ352 cable, this adapter can also be powered via an onboard power connector. In combination with programming via the integrated JTAG connection, this offers additional possibilities for independent tests.
Features
- Supported FPGAs:
- RTAX250S / SL-CQ352
- RTAX1000S / SL-CQ352
- RTAX2000S / SL-CQ352
- On-board FPGA: A3PE3000-2FG484i
- Capacity: 3,000,000 system gates
- Adapter size: 55mm x 55mm
- Supplied directly via CQ352 cable or via integrated power connector
- Onboard JTAG port
- Netlist Converter support
