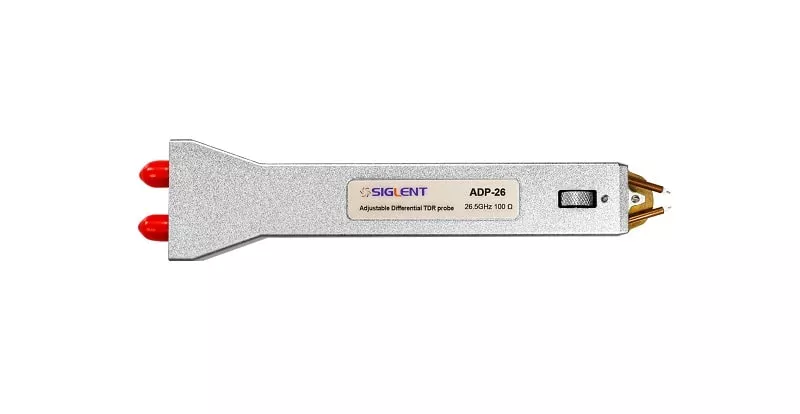

Siglent ADP-26 Differential TDR Probe

Product number: ADP-26

Siglent ADP-26 Differential TDR Probe up to 26.5 GHz

Volume discounts on request!

€1,225.00 Net

€1,457.75 incl. VAT

Delivery time 1 to 3 days

VAT included.

2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.

Free shipping

Shipping & Payment

Further information

ADP-26 Differential TDR Probe

Offer

Description

The ADP-26 is a differential TDR probe with a bandwidth of up to 26.5 GHz.

Hardware details

When it is necessary to measure the impedance of electronic components such as circuit boards and wires due to uneven spacing, appropriate test probes and fixtures must be made according to the test time. With this adjustable probe, the distance between the test probes can be adjusted between 0 mm and 6.5 mm using the built-in dial and the test can be performed quickly.

Technical Data

Probe model	ADP-26
Probe spacing	adjustable from 0 to 6.5 mm
Probe connection	SMA
Bandwidth	from 0 to 26.5 GHz
Probe impendence	100 Ω
Cable dependence	50 ± 0.5 Ω
Cable connection	One end of the SMA is matched to the probe, the other end can select N or SMA.
Repeatability and stability of the probe	Test more than 100 times continuously, with a deviation (R) of 2 % or less
Cable outer diameter	5 mm
