The SAP1000 active probe is for Siglent's SDS5000X series.
Volume discounts on request!
€869.00 Net
€1,034.11 incl. VAT
Shipping country
Customer Group
Währung
Delivery time 1 to 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Description

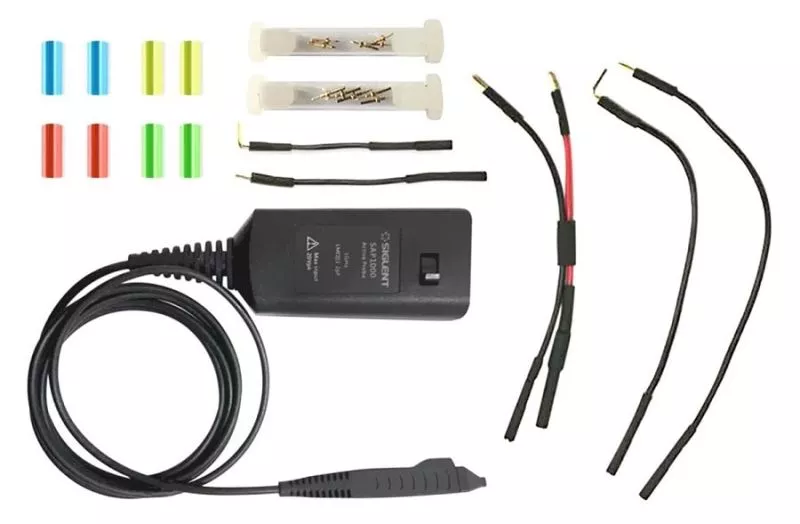

The SAP1000 probe is an active 1 GHz probe for use with the SIGLENT SDS5000X oscilloscopes
Features
- Probe bandwidth: 1 GHz
- DC input resistance 1 MΩ
- Input capacitance 1.2 pF
- Input dynamic range ± 8 V
- Probe offset range ± 12 V
- SAPBus interface
Technical Data
| Specifications |  CP4050 |
|---|---|
| Bandwidth | 1MHz |
| Maximum Continuous Current | 50 Arms |
| Peak Current | 140A |
| Switching Ratio | 500mV/A; 5mV/A |
| DC Measurement Accuracy | 500mV/A (20mA-14 Apk) ±3%±20mA; 50mV/A (200mA-100ApK) ±4% ±4% 200mA; 50mV/A (100A-140ApK)±15% |
| Power | 9V battery |
| Weight | 400 grams |
