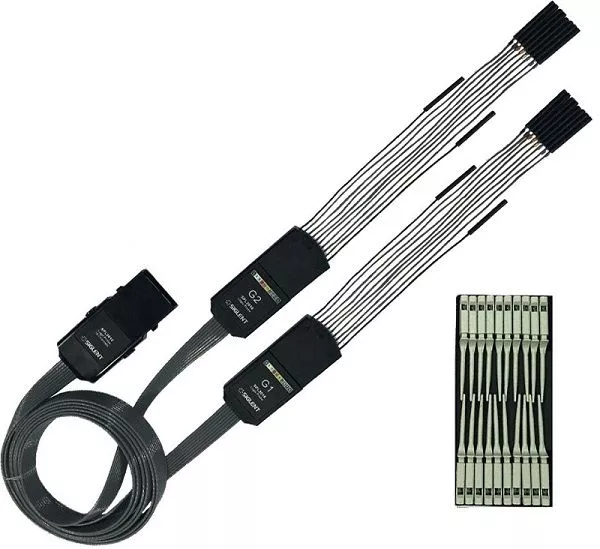

The SPL2016 Logic Probe is a hardware kit with 16 channels
Description
The SPL2016 is Logic Probe hardware kit for the SDS6000L, SDS5000X, SDS2000X HD and SDS2000 Plus series oscilloscopes. The oscilloscope requires the license activation key 16LA of the respective series to use the MSO option.
Technical Data
Specifications | ![]() SPL2016 |
---|---|
Channels | 16 |
Input Impedance | 100 KΩ||8 pF |
Max. Input Voltage | ±50 V peak |
Threshold Groupings | Pod 2: D15-D8 Pod 1: D7-D0 |
Threshold Selections | TTL (1.5 V), COMS (2.5 V), 3.3 V_LVCOMS (1.65 V), 2.5 V_LVCOS (1.25 V) |
User defined threshold range | ±3 V in 10 mv steps |
Threshold Accuracy | ±(3%*Threshold+200 mv) |
Input Dynamic Range | ±20 V |
Min. Input Voltage Swing | 800 mVpp |
Max. Input Frequency | Probe: 150 MHz Line: 50 MHz |
Min. Detectable Pulse Width | 3.3 ns |
Channel Skew | ±(1 digital sample interval) |
