Description

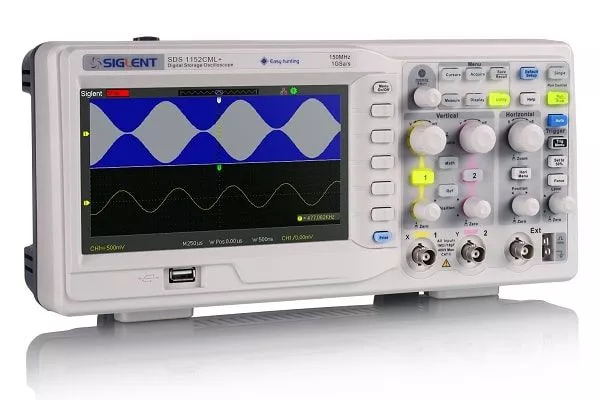

The SDS1052DL + is a dual-channel digital oscilloscope with a bandwidth of 50 MHz, a real-time sampling rate of 500 MSa / S and an equivalent sampling rate of 50 GSa / s.
The device offers the possibility of using 2 channels simultaneously. In addition, 1 external trigger channel is integrated in the device. The results are displayed on the 7-inch color TFT screen of the SDS1052Dl as clear waveforms. The instrument also features illuminated buttons for easy interpretation in low-light conditions.
Several trigger modes are also included in the SDS1052DL +. Edge, pulse, slop, video and alternate trigger modes are available. The device also has a memory depth of 32 kpts and a vertical sensitivity range of 2 mV / div - 10 V / div.
The SDS1052DL + also has a built-in digital filter and a recorder function for storing test data. It also has USB and RS-232 ports for downloading this data to the PC. The interface of the device is available in 12 different languages.
Features
- Supports multilingual display and embedded help
- Screen saver from 1 minute to 5 hours
- Digital filter and waveform recording function
- Shortcut memory function key
- 7-inch TFT LCD display with a resolution of 800 * 480
- Multiple interfaces: USB host, USB device (USBTMC), LAN (VXI-11), Pass/Fail.
Hardware details
The SIGLENT SDS1000DL+ series is a dual channel 50 MHz model. It includes a memory depth of 30 kpts, which helps ensure accurate waveform resolution and capture long signal lengths. With its 7-inch 800 x 480 TFT LCD screen, there is enough space to better see and analyze waveform details. In addition to a 500 MSa/s sampling rate, the SDS1000DL+ supports 32 parameter measurements and common mathematical operations to speed up complex/repetitive measurements.
Produkthighlights
Interfaces
The SDS1000DL+ supports USB host, USB device (USBTMC), LAN (VXI-11) and Pass/Fail
Online help
Supports multilingual display and embedded online help, makes the user familiar with all functions in a short time.
Digital recorder
The DVR is capable of recording data in real time without dead time. The SDS1000DL+ has 7 MB of memory for the recorder and supports a USB hard drive.
Math function
SDS1000DL+ provides 5 types of mathematical operations: +, -, *, / and FFT mode, which includes two display modes: a split display or overlapping signals/full screen.
Pass/Fail function
Pass/Fail functionWith easy-to-create user-defined test templates, the SDS1000DL+ compares the current measured curve to the template mask curve, making it suitable for long-term signal monitoring or automated production line testing.
Zoom function
Zoom can expand a sub-segment of the waveform, giving the user not only an overview of the entire signal, but also a detailed view of the zoomed segment. The zoom function is a convenient way to locate and isolate signal details.
32 automatic measurements
The SDS1000DL+ supports measurement modes for voltage, time and delay with a total of 32 different parameters. The user can select five measurements to display on the screen. All measurement parameters can also be displayed simultaneously.
Memory depth up to 32 kpts
Long Memory mode (32 kpts) allows you to use a high sampling rate over a longer period of time, so you can capture more signal and zoom in quickly to focus on the area of interest
Technical Data
Device specification | SDS1102CML+ | SDS1052DL+ |
---|---|---|
Bandwidth | 100 MHz | 50 MHz |
Channels | 2CH +Ext | 2CH +Ext |
Real-time sampling rate | 1 GSa/s | 500 MSa/s |
Memory depth | 2 Mpts | 32 kpts |
Rise Time | 3.5 ns | 7 ns |
Imput Impedance | 1MΩ‖17pF | 1MΩ‖17pF |
Time Base Range | 2.5ns/div-50s/div | 10ns/div-50s/div |
Vertical sensitivity | 2mV-10V/div | 2mV-10V/div |
Vertical resolution | 8 bit | 8 bit |
Trigger source | CH1, CH2, Ext, Ext/5, AC Line | CH1, CH2, Ext, Ext/5, AC Line |
Trigger types | Edge, Pulse, Video, Slope, Alternative | Edge, Pulse, Video, Slope, Alternative |
Interfaces | USB Host, USB Device, LAN, Pass/Fail | USB Host, USB Device, LAN, Pass/Fail, RS232 |
