Description
The SiglQPro-IoT is a software licence for the IOT Signals Generation. This licence is available for a selected generator serial number of the SSG5000X-V or SDG7000A series.
Features
- Bluetooth BR/EDR
- Bluetooth low energy
- IEEE 802.15.4 O-QPSK BPSK (ZigBee)
- IEEE 802.15.4 SUN FSK
- IEEE 802.15.4 SUN OFDM
- ITU-T G.9959 (Z-WAVE)
- User-defined OFDM
- Custom IQ
- A comprehensive PC-based software for general and standards-based signalling
- Support for Bluetooth, IoT, Custom OFDM, Custom IQ and in the future 5G NR, LTE and WLAN and more
- Compatible with the conversion of various data formats
- Simplifies signal creation and speeds up testing, reduces overall test costs and accelerates time-to-market in the development cycle
- Meets the requirements of IoT and other wireless cellular communications
Hardware details

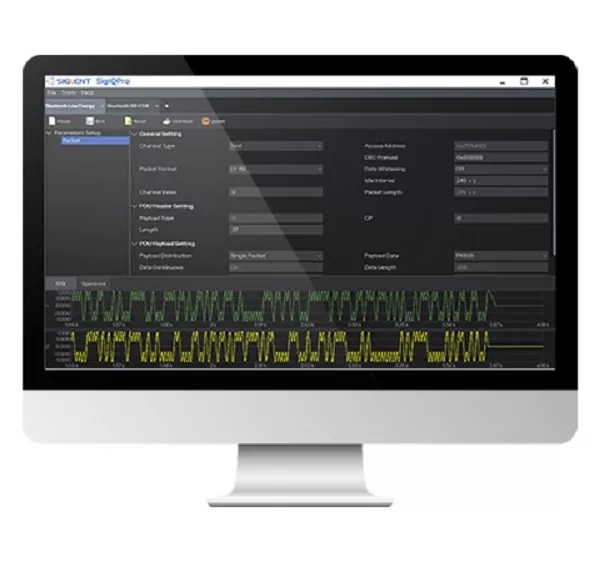

SigIQPro is a flexible PC-based signal generation software that takes signal generation to a whole new level. SIGLENT devices and SigIQPro signal generation software integrate simulation, design and test to meet the needs of users in all phases of design, R&D and production. Designed specifically for easy generation of logged and modulated signals, SigIQPro features a user interface that supports intuitive operation and provides relevant documentation that makes it easy to create standards-compliant waveforms for a variety of applications, as well as support for downloading signal files to the SIGLENT signal generators for playback.
Product highlights
Bluetooth
- Creation of signals for BR, EDR and LE specifications
- Support of 2 Ms/s symbol rate for higher data rates
- Modulated data streams with single and increased data rate
- Fully encoded Bluetooth packets with 2-DHx, 2-EVx, 3-DHx and 3-EVx packet types
IoT (Internet of Things)
- A low data rate wireless network operating mainly outdoors.
- Typically use mesh or peer-to-peer multi-hop technology to communicate with an access point
- Creation of signals for IEEE 802.15.4 SUN FSK and IEEE 802.15.4 SUN OFDM specifications
- Creation of signals for IEEE 802.15.4 O-QPSK / BPSK ZigBee and ITU-T G.9959 FSK / GFSK Z-Wave specifications.
.jpg)
User-defined modulation (User-defined IQ and User-defined OFDM)
- Custom IQ and custom OFDM, including digital modulation, custom modulation, multi-tone and LFM sweep
- Modulation format: -2ASK
, PR-ASK
-2FSK, 4FSK to 16FSK, MSK
-8QAM, 16QAM to 4096QAM
-BPSK, OQPSK, QPSK, 8PSK, DBPSK, DQPSK, D8PSK, PI/4-DQPSK, PI/8-D8PSK, 16APSK, 32APSK
Toolkit
- A file conversion tool that is compatible with the conversion of various data formats
- Export of waveform files (*.arb), project files (*.project) or state files (*.state)
- Import of SIGLENT-encoded waveforms (*.arb) or user-defined waveforms ( *.txt/.csv/.dat, *.mat, *.project, *.state, etc)
SIGLENT Bluetooth® signal generation and signal analysis solution
Together with the SigIQPro signal generation software and the SDG7000A/SSG5000X-V, the SSA5000A forms an economical and efficient SIGLENT Bluetooth signal generation and signal analysis solution that accelerates the process from signal generation through data information to evaluation.
Technical Data
| PC software |  SigIQPro |  SigScopeLab |
|---|---|---|
| Description | A flexible PC-based signal generation software that can be used to generate complex signals that are fully compliant with Bluetooth, IoT and other communication standards | Offline waveform data analysis on PC Acquire waveform data on PC for online analysis |
