Siglent SDS2204X Plus Oscilloscope

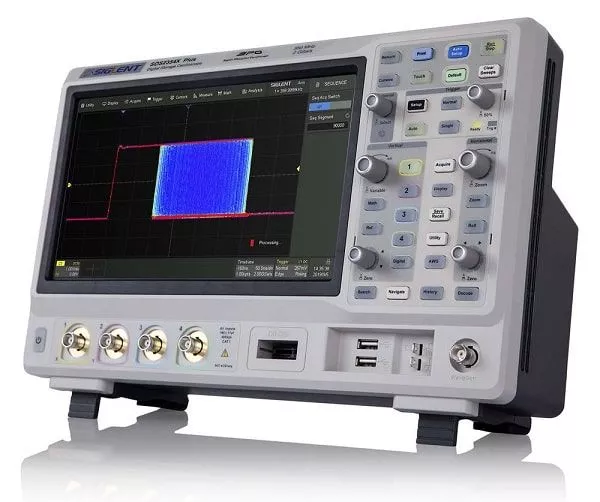

The SDS2204X Plus oscilloscope from Siglent offers a bandwidth of 200 MHz, as well as 4 analog and 16 digital channels.


  • 3 Years Warranty
  • 2.5% advance payment discount
Free shipping

Delivery time 1 to 3 days

Further information
Product number: SDS2204X Plus
Manufacturer: Siglent
  • When purchasing a new oscilloscope from the SDS2000X-Plus/HD series, you have the option of the Promotion Analysis Bundle for 235€ to purchase which has a total value of 2020€ corresponds.


The SDS2204X Plus oscilloscope from Siglent offers powerful hardware and a wide range of features. This model offers a bandwidth of 200 MHz, as well as 4 analog and 16 digital channels of mixed-signal analysis capability. The SDS2204X has a maximum sampling rate of 2 GSa/s and a maximum recording length of 200 Mpts/channel.


  • Available bandwidths: 350 MHz, 200 MHz and 100 MHz
  • Real-time sampling rate of up to 2 GSa / s. A 500 MHz bandwidth upgrade option is available for 350 MHz models.
  • SPO technology
  • Signal acquisition rates up to 120,000 wfm / s (normal mode) and 500,000 wfm / s (sequence mode)
  • Supports intensity gradation and color temperature display modes with 256 levels
  • Recording length up to 200 Mpts / channel, total 400 Mpts for all 4 channels
  • Digital trigger system
  • Intelligent trigger: edge, slope, pulse, window, runt, interval, failure, pattern and video (HDTV supported). Trigger zone simplifies advanced triggering
  • Serial bus triggering and decoder, supports I 2 C, SPI, UART, CAN, LIN (standard) and CAN FD, FlexRay, I 2 S and MIL-STD-1553B protocols (optional)
  • Low background noise with voltage scales from 0.5 mV / div to 10 V / div
  • 10-bit mode provides higher resolution and lower noise
  • Segmented acquisition mode (sequence mode) where the maximum record length is divided into multiple segments (up to 90,000) according to user-specified trigger conditions, with a very short dead time between segments for acquisition of the qualifying event
  • History waveform recording function (history) for up to 90,000 triggered waveforms (frames)
  • Automatic measurement function for more than 50 parameters, supports statistics with histogram and trend
  • Two math tracks support 2 Mpts FFT, +, -, x, ÷, d / dt, ∫dt, √, average, ERES and formula editor
  • Numerous data processing and analysis functions such as search, navigate, mask test, Bode plot, power analysis (optional), and counter
  • 16 digital channels (optional)
  • Built-in 50 MHz waveform generator (optional)
  • Large 10.1-inch TFT LCD display with 1024 × 600 resolution; capacitive touchscreen supports multi-touch gestures
  • Multiple interfaces: USB host, USB device (USBTMC), LAN (VXI-11 / Telnet / Socket), Pass / Fail, Trigger Out
  • Built-in web server supports remote control via LAN port using a web browser. Supports SCPI remote control commands

Hardware details

The SDS2000X Plus Series models supported signal acquisition rate up to 120,000 wfm/s in normal mode (500,000 wfm/s in sequential mode). The display supports a 256-level intensity gradation function and a color temperature display function. The trigger system offers many powerful trigger modes including serial bus triggering. Signal history recording, sequence capture, and search and navigation functions enable accurate acquisition, storage, and analysis of advanced signal waveforms. The SDS2000X PLus series offers an impressive range of measurement and calculation functions, an unlockable option for a 50 MHz signal generator, as well as serial decoding, mask testing, Bode Plot and power analysis.

The numerous operating options, such as multi-touch gesture input via the large 10.1 inch display, remote control via the web or the ability to navigate with keyboard and mouse, greatly increase user-friendliness and working efficiency with SDS2000X Plus series models.

 Product highlights


SDS2000X Plus - Introduction

Technical Data

Device specificationSDS2000X Plus - Small
SDS2102X Plus
SDS2000X Plus - Small
SDS2104X Plus
SDS2000X Plus - Small
SDS2204X Plus
SDS2000X Plus - Small
SDS2354X Plus
Bandwidth100 MHz100 MHz200 MHz350 MHz
Channels2+ EXT4+ EXT4+ EXT4+ EXT
Sampling rate (real time wide)2 GSa / s2 GSa / s2 GSa / s2 GSa / s
Capture rate120.000 Wfm/s120.000 Wfm/s120.000 Wfm/s120.000 Wfm/s
Memory depth200 Mpts / ch200 Mpts / ch200 Mpts / ch200 Mpts / ch


SPL2016 Logic Probe
The SPL2016 Logic Probe is a hardware kit with 16 channels

BAG-S2 Carrier Bag
The BAG-S2 is a carrying bag for selected Siglent series.

BAG-H2 Carrier Bag
The BAG-H2 is a carrying bag for selected Siglent series.

SDS2000-RMK Rackmount-Kit
The SDS2000-RMK rackmount kit is compatible with the SDS2000 series oscilloscopes.

2.92F-2.92F-40A Adapter
Siglent 2.92F-2.92F-40A adapter with up to 40 GHz
