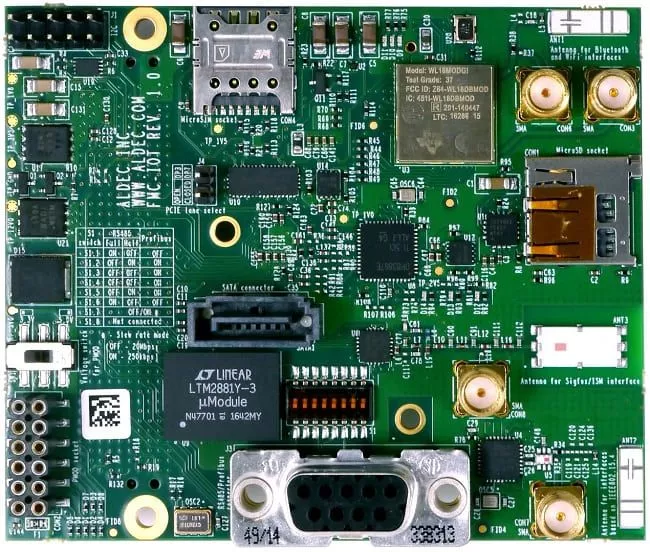

The FMC-IOT Daughter Board provides peripherals and interfaces used in embedded designs that are key for IoT applications.
Product number: FMC-IOT
Manufacturer: Aldec
Description
The FMC-IOT daughter card provides a set of peripherals and interfaces commonly used in embedded designs that are key to Internet of Things (IoT) applications.
Various wireless communication standards are used in such designs. This card enables prototyping with all Wi-Fi, Bluetooth, ZigBee, Sub-GHz RF devices, as well as wired Ethernet and USB. It extends the functionality of Aldec's main FPGA boards when certain interfaces are not available or when they need to be connected to another FPGA on the main board.
Typical applications for this daughter card are physical ASIC / SoC prototyping, In Circuit Emulation (ICE) or evaluation and prototyping of embedded and IoT designs.
Components & Interfaces
- Wireless/ RF
- Wi-Fi IEEE 802.11a, 802.11b, 802.11g and 802.11n
- Bluetooth interface (Bluetooth 4.1 compliance) with BLE
- IEEE 802.15.4 standard
- ZigBee,
- 6LoWPAN,
- RF4CE,
- SP100,
- WirelessHART
- Sub-GHz interfaces
- Sigfox,
- WMBus,
- SUN interfaces according to 802.15.4g
- Wired
- Gigabit Ethernet (DP83867E PHY)
- RS-485 / Profibus interface
- 3 in one Mini PCI Express / USB 2.0 / Micro SIM card socket
- USB 2.0 transceivers
- Micro SIM card socket
- SATA host interface
Memory
- Micro SD card socket
- 64 kB EEPROM (to meet ANSI / VITA 57.1 FMC standard)
Clocking
- 2x oscillators 100MHz, 200MHz
- 1x clock for SATA (150 MHz)
Connectivity
- Main board connector:
- FPGA mezzanine card connector according to ANSI / VITA 57.1 FMC standard
- 2x6 Digilent Pmod™ Compatible Header
- External I2C connector
