Elprotronic S-GANG-ISO-X standalone gang programmer for up to 8 targets, USB-C, Ethernet, RS232, JTAG/SWD/SPI/QSPI and production automation.
Volume discounts on request!
€1,130.25 Net
€1,345.00 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 2-5 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Description

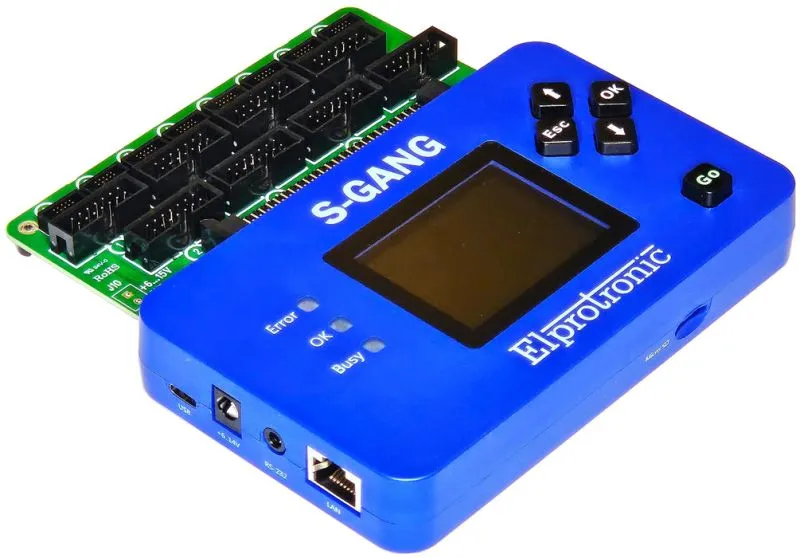

The S-GANG is a fast, flexible and reliable standalone gang programmer for programming up to 8 targets in parallel. Separate power, reset and communication lines per channel make it suitable for production programming, functional test, serialization and quota-controlled workflows.
Features
- Programs up to 8 targets in parallel
- Standalone and PC-interactive operation
- Up to 60 images / 120 MB internal flash
- Optional MicroSD expansion
- USB-C, Ethernet and RS232
- Galvanic isolation for USB, Ethernet and RS232
- Vcc 1.65 V to 5 V
- Programmable target clock from 1 to 20 MHz

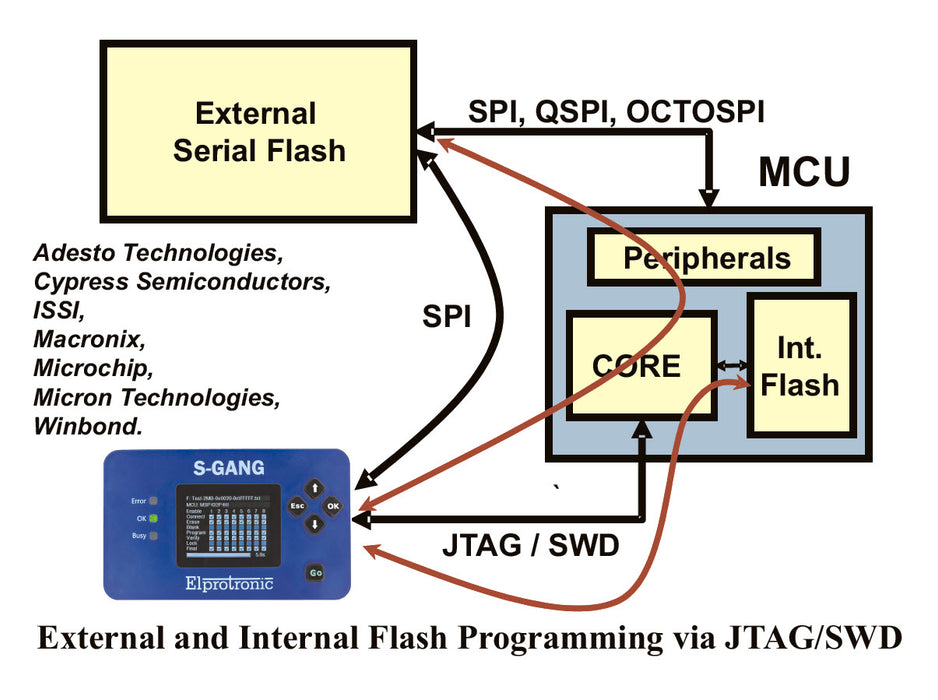

The S-GANG is well suited for automated production, parallel programming of multiple boards and direct programming of external SPI/QSPI flash as well as internal flash via JTAG/SWD. CLI plus C++, C#, Python and LabView support make it easy to integrate into production fixtures and test stations.

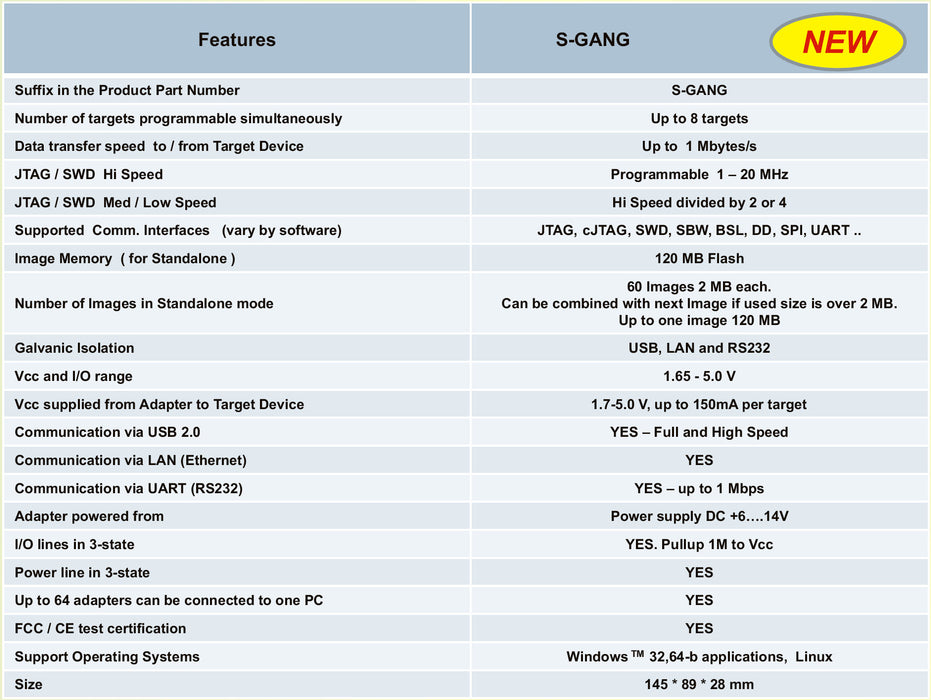

Technical Data
| Parallel programmable targets | Up to 8 |
|---|---|
| Operating modes | Standalone, PC-interactive |
| Internal storage | Up to 60 images / 120 MB |
| Expansion | MicroSD card |
| PC interfaces | USB-C, Ethernet, RS232 |
| Galvanic isolation | USB, Ethernet, RS232 |
| Supply Vcc | 1.65 V to 5 V |
| Target clock | 1 to 20 MHz |
| Supported protocols | JTAG, cJTAG, SWD, SBW, BSL, SWIM, UART, SPI, QSPI |
|---|---|
| Supported target platforms | ARM, MSP430, STM8, RL78, AVR/PIC, iMOTION 2.0, SPI Flash |
| Extra features | Serialization, functional test, quota, parallel gang programming |
| Software interfaces | CLI, C++, C#, Python, LabView |
| Supported OS | Windows, Linux |
| Automation | CLI, C++, C#, Python and LabView |
|---|---|
| Production features | Serialization, functional test, quota and parallel gang programming |
| Package contents | S-GANG-ISO, power supply, splitter board, USB-C cable plus 8x 10-pin and 8x 14-pin JTAG/SWD cables |
| Target systems | ARM, MSP430, STM8, RL78, AVR/PIC, iMOTION 2.0 and SPI Flash |
|---|---|
| Programming protocols | JTAG, cJTAG, SWD, SBW, BSL, SWIM, UART, SPI, QSPI |
| Communication | USB-C, Ethernet and RS232 with galvanic isolation |
