Description

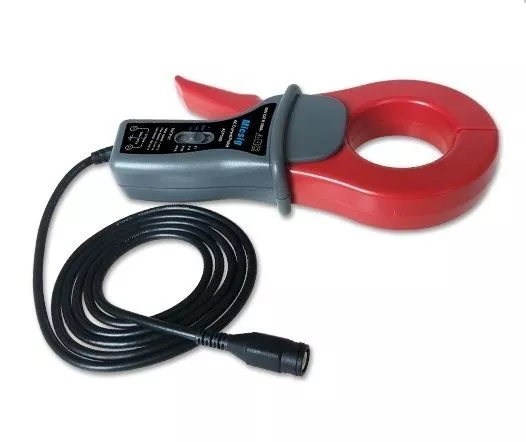

The Micsig ACP current clamp offers a measurable range in AC current from 100mA to 1000A and a bandwidth from 100 Hz to 100 KHz. The ACP1000 has a max. accuracy of 1% and a noise of less than 1mV. The compact design makes the ACP1000 current probe ideal for mobile applications and it can be used on Micsig oscilloscopes without an external power supply via the UPI multifunction interface.
The AC current probes can measure current signals with complex waveforms, such as transient inrush currents of power devices, sinusoidal currents of three-phase power systems, harmonic components of measured currents, current measurement of IGBTs and MOSFETs, etc.
The Micsig ACP 1000 is a current clamp probe for the Micsig SATO-, STO- and TO series portable and tablet oscilloscopes, as well as for other oscilloscopes with BNC. With an additional optional BNC-to-banana adapter (not included), the probe can also be used with multimeters.
Technical Data
| Model Specification |  ACP1000 |
|---|---|
| Bandwidth | 100 Hz - 100 KHz |
| Measuring range | 100 mA - 1000 A |
| Nominal output | 100 mV/A, 10 mV/A, 1 mV/A |
| Nominal load | ≥100 kΩ |
| Accuracy level | 3% ±10 mV/2% ±5 mV/1% ±1 mV |
| Highest accuracy | 1% |
| Max primary current | 2000A (2s) |
| Output signal | mv/A |
| Operating temperature | -15°C bis +75°C |
| Protection class | CAT III 600 V |
| Max. Conductor size | 52 mm |
| Dimensions (mm) | 111 x 216 x 45 |
| Output cable | 1.5 m BNC-insulated coaxial output cable can be connected directly to an oscilloscope. Can also be used with multimeters, requires optional BNC/banana adapter. |
