Prodigy Tektronix Osziloscope RFFE Electrical Validation and Protocol Decode Software

RFFE Protocol Decode Software decodes standard, fast, fast plus, and high-speed RFFE signals.

Price on request

Free shipping

Further information
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: PGY-RFFE
Manufacturer: Prodigy

Description

RFFE Protocol Decode Software offers protocol decoding as specified in the RFFE specification. PGY-RFFE Protocol decode software runs in Tektronix Oscilloscope and provides measurements for protocol decode at the click of a button. This allows engineers to quickly check for RFFE compliance and flexibility to debug the failure. In addition to this, engineers can decode the command and response of RFFE to debug the communication. PGY-RFFE takes advantage of the digital channels of MSO and provides the decoding of RFFE data lines.

Features RFFE Software

  • RFFE Protocol Analysis using oscilloscope live channel data or stored RFFE signals
  • Powerful RFFE real-time protocol aware hardware-based trigger capabilities
  • Displays the decoded data in RFFE frame format
  • Error checks for parity bits of command and data
  • Error checks for Byte count with actual data count and missing SSC
  • Flexibility to view Slave ID in Symbol or Hex value
  • Flexibility to view decoded data in hex, binary, decimal, or octal format
  • Long duration data decode support to capture more number of RRFE protocol transactions
  • Search capabilities to locate protocol event
  • Filter capabilities to view information of Interest
  • Documentation by exporting data in CSV and TXT file format
  • Report Generation

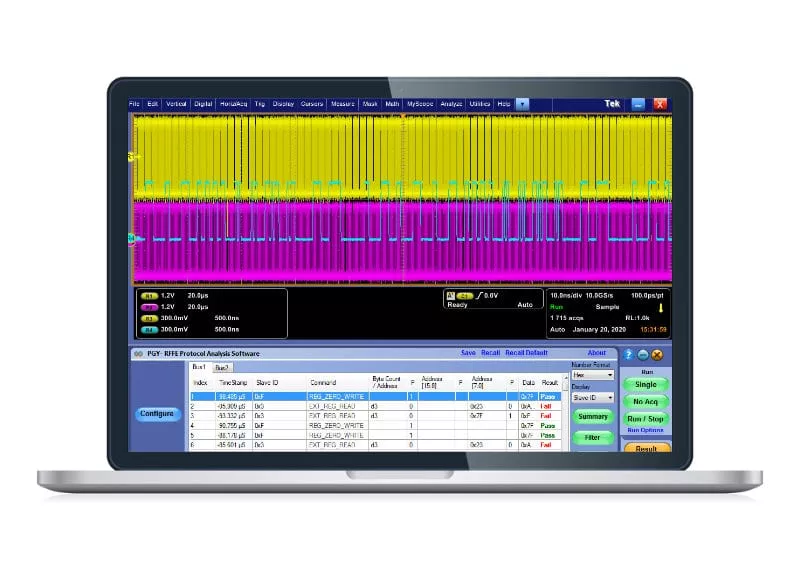

Software View

PGY-RFFE Electrical Validation and Protocol

PGY-RFFE Software runs on Tektronix oscilloscopes such as DPO/MSO5000, DPO7000, and DPO/DSA/MSO70000 oscilloscope series. PGY-RFFE utilizes the hardware-based real-time RFFE protocol aware trigger, and protocol analysis of long acquisition record length up to 125MB to provide superior RFFE Protocol Analysis results at the press of a button.

Easy RFFE Protocol Test Setup and Debug:

PGY-RFFE Software installed in Tektronix oscilloscopes can be launched by clicking the PGY-RFFE icon in the oscilloscope desktop folder. Now the user has simultaneous view and control of the oscilloscope as well as PGY-RFFE Software. Users can analyze RFFE in Single acquisition mode, Repetitive mode, and No Acq mode. In No Acq Mode, the RFFE software analyses an already captured RFFE signal that is present in the acquisition memory of the oscilloscope.

PGY-RFFE-Protocol-Test-Setup

Powerful RFFE Protocol Aware Hardware-Based Real-Time Trigger:

PGY-RFFE Protocol Aware Hardware Trigger

The simple, easy-to-use RFFE protocol-aware trigger feature allows engineers to capture RFFE signals at specific events in the RFFE interface. Select any of the live channels Ch1 to CH4 as trigger sources and set the trigger pattern. The trigger can be set to full speed, half speed, or any custom data rate. RFFE provides the flexibility to select a combination of any one of the sixteen slave IDs, any command, and command-dependent parameters such as Byte count, Address, or Data.

The symbol table for Slave ID:

PGY-RFFE Software provides the flexibility to view the decoded data in the symbol table. RFFE specification documents provide guidelines to describe the Slave IDs. PGY-RFFE software has the default slave ID table. However, the user can edit the default table and apply the custom described slave IDs for easy analysis of protocol activities. This symbol table is used for easy trigger setup, protocol analysis, filter, and search features.

PGY-RFFE-Slave-Identivication

Protocol Analysis of RFFE Signals:

PGY-RFFE Protocol Analysis

RFFE Protocol decoded data is displayed as above. PGY-RFFE software processes up to 125MB record length and displays all the RFFE protocol packets. The software analyses each RFFE packet for missing SSC, parity bit error in address, command, and data bytes. PGY-RFFE software identifies any RFFE packet with missing SSC. This ensures that each RFFE packet meets the protocol specifications of RFFE. PGY-RFFE software displays result for each RFFE protocol packet whether pass or fail.

Protocol Summary:

Protocol Summary provides a quick result view of protocol analysis of RFFE signals. This view lists the pass/fail status of SSC, parity bit in command, address, and data in the acquired data. This helps in locating the cause of RFFE Protocol packet failure.

PGY-RFFE-protocol-summary

Filter feature:

PGY-RFFE-Filter-feature

It is extremely challenging to view information of interest while there are hundreds of protocol transactions taking place between various devices. These problems compound during protocol analysis of a long record length. PGY-RFFE software solves this problem using the filter feature. By filtering information for Slave ID or specific command, or parity error type, the user can view only specific data of interest. Filters provide filtering of information using individual packet content or a combination of packet contents.

Search:

During protocol analysis, users tend to capture a large amount of data and capture any non-repeatable event. It is also extremely difficult to locate the RFFE packet of interest. RFFE Software’s Search filter is able to quickly locate the required Slave ID or command or Combination of both.

PGY-RFFE-Search

Supported Tektronix oscilloscopes

  • DPO 70000
  • MSO 70000
  • DSA 70000
Trigger EventTrigger Content
Link Start up Sequence (LSS)Trigger on LSS Phase 1 (TRG_UPR_0)
Trigger on LSS Phase 2 (TRG_UPR_1)
Trigger on LSS Phase 3 (TRG_UPR_2)
PHY Adapter layer ContentPACP_PWR_req
PACP_PWR_cnf
PACP_cap_ind
PACP_EPR_ind
PACP_TEST_MODE_req
PACP_GET_req
PACP_GET_cnf
PACP_SET_req
PACP_SET_cnf
PACP_Test_Data
Data Link layer ContentData_SOF
Data_COF
AFC (Acknowledgement)
NAC (No Acknowledgement)
