Prodigy Tektronix Osziloscope QSPI Electrical Validation and Protocol Decode Software

QSPI Electrical Validation and Protocol Decode Software offers electrical measurements compliance testing and protocol decoding.

Price on request

Free shipping

Further information
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: PGY-QSPI
Manufacturer: Prodigy

Description

QSPI Electrical Validation and Protocol Decode Software offers electrical measurements compliance testing and protocol decoding as specified in QSPI specification. PGY-QSPI Electrical validation and Protocol decode software runs in Tektronix Oscilloscope and provides electrical measurements and protocol decode at the click of a button. This allows engineers quickly check for QSPI compliance and flexibility to debug the failure. In addition to this engineer can decode the command and response of QSPI to debug the communication. PGY-QSPI takes advantage of digital channels of MSO and provides the decoding of QSPI data lines.

Features QSPI Software

  • Single and Dual Transfer rate (STR/DTR)
  • Supports electrical measurements and compliance testing for Ext SPI, Dual SPI, and Quad SPI
  • Supports Triggering on command index and on S# falling edge
  • Supports Analog and Digital Channels of Tektronix MSO
  • Automated electrical measurements with a customizable reference level of QSPI electrical signal
  • Customizable measurement limit setup for pass/fail validation of electrical signal to enable measurements
  • Ability to store the QSPI protocol data and electrical data in CSV and txt format
  • Report Generation
  • Supports offline analysis

Configuration Panel

PGY-RFFE Electrical Validation and Protocol

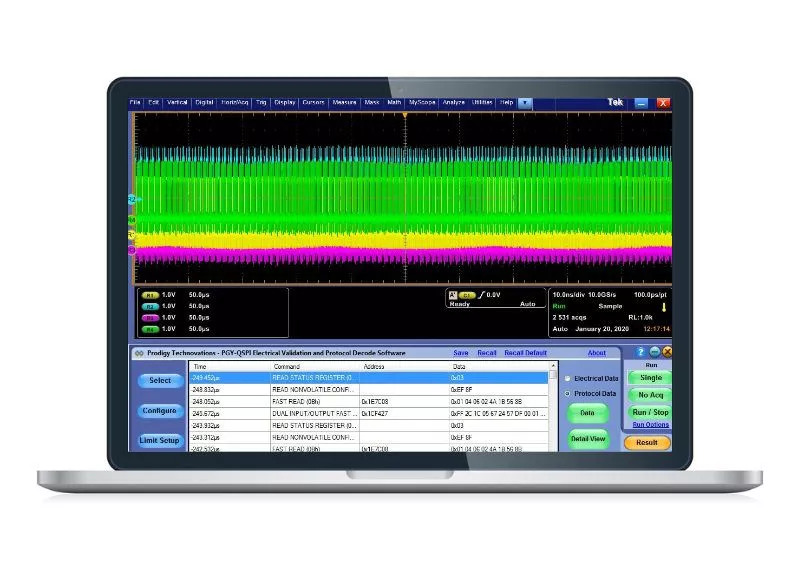

Configure panel helps in selecting the Signal Source, Such as Channels, Wfm Files, and CSV Files (Digital). Live Analog or Digital Channels of the oscilloscope can be used for analyzing the signal. The software decodes the data and displays both the protocol data and electrical measurements as shown below. The offline analysis is made using the stored .wfm files (Analog channels data) or from CSV files (Digital Channel data).

Limit-Setup-Panel

The Limit Setup tab helps to set up the limits and reference levels of each selected measurement. In order to characterize and validate QSPI signals, PGY-QSPI software provides a graphical measurement reference level setup to set the measurement reference level of QSPI signals.

PGY-RFFE-Protocol-Test-Setup

Electrical Measurements

PGY-RFFE Protocol Aware Hardware Trigger

PGY-QSPI software provides an extensive list of electrical measurements are (DTR not supported):

  • lock frequency for all commands other than reading
  • Clock frequency for reading commands
  • Clock High Time
  • Clock Low Time
  • Clock rise Time
  • Clock fall Time
  • S# active setup time (relative to the clock)
  • S# not active hold time (relative to the clock)
  • Data in setup time
  • Data in hold time
  • S# active hold time (relative to the clock)
  • S# not active setup time (relative to the clock)
  • S# deselect time after a READ command
  • S# deselect time after a non READ command
  • Output disable time
  • Clock LOW to output valid under 30pF
  • Clock LOW to output valid under 10pF
  • Output hold time (clock LOW)
  • Output hold time (clock HIGH)
  • HOLD command setup time (relative to the clock)
  • HOLD command hold time (relative to the clock)
  • HOLD command setup time (relative to the clock)
  • HOLD command hold time (relative to the clock)
  • HOLD command to output Low-Z
  • HOLD command to output High-Z
  • Write protect setup time
  • Write protect hold time
  • Enhanced VPPH HIGH to S# LOW for extended and dual I/O page program

Protocol Decode

GY-QSPI simultaneously decodes the QSPI signals along with electrical measurements. The software provides flexibility to view decoded commands, addresses, and associated data. In detail, the view links the selected command to the electrical waveform for easy debugging of protocol-related problems.

PGY-RFFE-Slave-Identivication

Supported Tektronix oscilloscopes
