Description

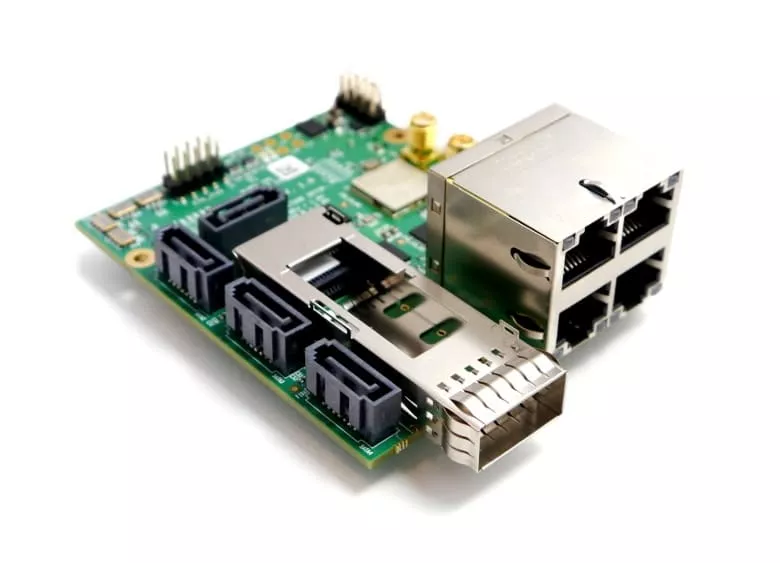

The FMC-NET card is designed to enable prototyping and evaluation of various network designs by providing commonly used peripherals such as Gigabit Ethernet, wireless WiFi/Bluetooth, fiber optic QSFP+ and others.
Four independent Gigabit Ethernet PHY modules enable prototyping of designs that require multiple network ports such as switches and routers. Additionally, the Ethernet PHY, a DP83867CR part from Texas Instruments, supports the IEEE 1588 SOF time synchronization protocol required in industrial applications. The availability of QSFP+ and dual-band WiFi/Bluetooth modules makes it easy to review complex and contemporary projects involving fiber optic or wireless communications.
There are also 4x SATA ports that can be used to connect storage or other SATA compatible devices or for debugging.
Connectivity
- Main board connector:
- FPGA mezzanine card connector according to ANSI / VITA 57.1 FMC standard
- Quad RJ45 Ethernet port
- QSFP + MOLEX connector 75586-0010 and shield
- SATA standard connector, MOLEX 67800-5005
- SMA connectors for connecting antennas for wireless interfaces
- JTAG connector for Ethernet PHYs
Components & Interfaces
- 4x Ethernet PHY 10/100/1000 with IEEE 1588 SOF (DP83867CR) with RGMII support - industrial quality
- WiFi Dual Band and Bluetooth WiLink 8 Module (WL1837MOD) - Industrial Grade
- 1x QSFP + 4 lanes up to 40Gb/s
- 4x SATA device connectors
clock
- 2x oscillators (100MHz, 150MHz)
- 2x oscillators (156.25MHz, 150MHz) for QSFP+ and SATA interfaces
Memory
- 64 kB EEPROM (to meet ANSI/VITA 57.1 FMC standard)
