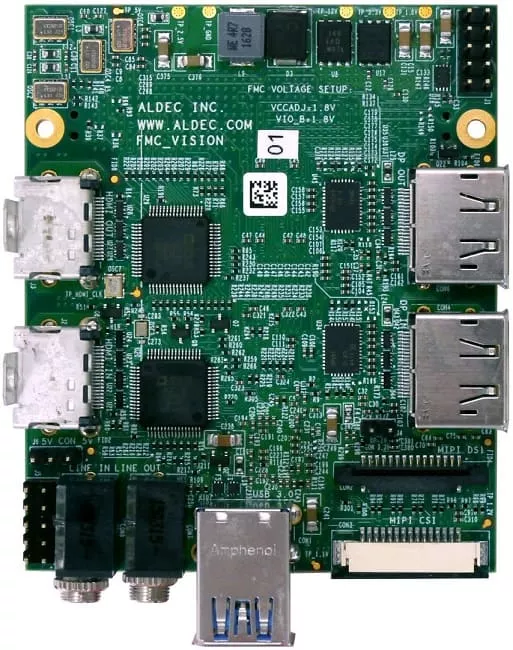

The FMC VISION card provides a range of multimedia interfaces for display panels, monitors and cameras, which are popular in various designs such as embedded vision and the like.
Product number: FMC-VISION
Manufacturer: Aldec
Description
The FMC-VISION card provides a range of multimedia interfaces for display panels, monitors and cameras that are common in various designs such as embedded vision, graphics and video processors, HDTV, projectors, cameras and the like.
There is also an audio codec and a USB 3.0 host controller on this daughter card, which are well suited for physical prototyping of all kinds of multimedia designs.
Components & Interfaces
- HDMI 1.4 interfaces
- HDMI IN with power-saving 165 MHz HDMI receiver ADV7611
- HDMI OUT with high power 165MHz transmitter ADV7513
- DisplayPort Interfaces
- DisplayPort IN 4x channels with Linear Redriver SN65DP141
- Display Port OUT 4x channels with Linear Redriver SN65DP141
- MIPI Interfaces
- MIPI CSI 2x D-Lanes with D-PHY FPGA LVDS Bridge MC20001
- MIPI DSI 2x D-Lanes with FPGA LVDS to D-PHY Bridge MC20002
- USB3.0 / PCIe Host Controller to PCIe Bridge
- Based on Texas Instruments TUSB7320RKMR xHCI Host Controller
- PCIe x1 Gen2 interface to host system
- 2x USB 3.0 downstream ports
- Audio codec
- Stereo audio codec SGTL5000XNAA3
- Stereo audio codec SGTL5000XNAA3
Memory
- 64 kB EEPROM (to meet ANSI / VITA 57.1 FMC standard)
clock
- 2x oscillators 100MHz, 200MHz
- 1x clock for SATA (150 MHz)
Connectivity
- Main board connector:
- FPGA mezzanine card connector according to ANSI / VITA 57.1 FMC standard
- HDMI sockets
- DisplayPort standard jacks
- MIPI CSI / DSI - FPC connectors
- Dual USB3.0 standard A socket
- External I2C connector
- Analog Audio Line IN and Line OUT Connectors
