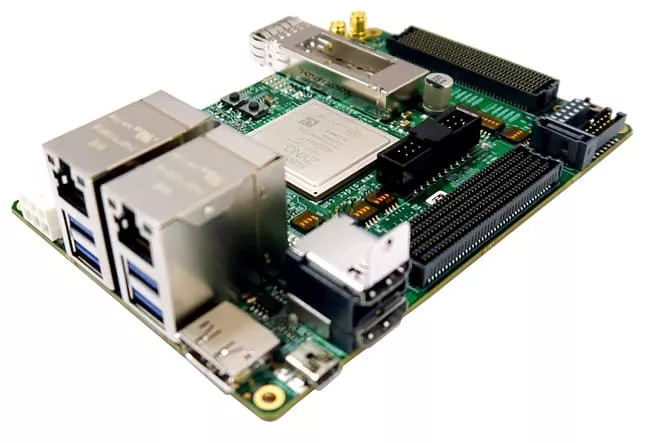

Aldec TySOM-3 Embedded Prototyping Board

TySOM-3-ZU7 is a compact prototyping board with Zynq® UltraScale+ ™ MPSoC device that offers 64-bit processor scalability and combines real-time control with soft and hard engines for graphics, video, waveform and packet processing.

Price on request

Further information
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: TySOM-3
Manufacturer: Aldec

Description

TySOM-3-ZU7 is a compact prototyping board with Zynq® UltraScale + ™ MPSoC device, the 64-bit processor scalability north and control control with various and hard motors for graphics, video, waveform and packet processing.

Xilinx Zynq UltraScale + ZU7EV-FFVC1156 MPSoC owns a video codec unit that becomes H.264 / H.265 and is tested over the old FPGA in the UltraScale + ™ MPSoC family. This chip has a quad-core ARM Cortex-A53 as a connection distribution work unit, a dual-core ARM Cortex-R5 as a future processing unit and ARM Mali-400 MP2 as a graphics processing unit. TySOM-3-ZU7 was developed to distinguish itself from the selection of the periphery, since all functions of the MPSoC chip Zynq UltraScale + ZU7EV-FFVC1156 are preserved. This prototyping card contains 4 GB of DDR4 memory for programmable logic (PL) and controls DDR4 SODIMM memory for the processing system (PS). This card runs with 2 GB NAND storage and 32 GB SSD storage on a micro SD card. Communication and networking is possible via × 2 Gigabit Ethernet, Wi-Fi and Bluetooth, CAN, Pmod, 4 × USB 3.0, USB to UART Bridge, SATA and QSFP + connection. Multimedia interfaces are received via DisplayPort, HDMI IN / OUT.

Chipset / SoC

  • Xilinx Zynq UltraScale + ZU7EV-FFVC1156 MPSoC
  • Quad-core ARM Cortex-A53 as application processing unit
  • Dual-core ARM Cortex-R5 as real-time processing unit
  • Video codec unit
    • 2x XADC - 12-bit analog-to-digital converter with 1 MSPS
    • FPGA: ZU7EV
    • 504K logic cells, 460,800K flip-flops, 38MB RAM, 1728 DSP

External daughterboard connector type

  • FMC HPC standard connector VITA 57.1-2010 compliant
  • FMC LPC (+5 GTH) standard connector VITA 57.1-2010 compliant

Multimedia

  • HDMI 2.0 Out - TE connectivity 1888811-1
  • HDMI 2.0 IN-TE connectivity 1888811-1
  • DisplayPort

Interfaces

  • 2 × Gigabit Ethernet PHY DP83867CR
  • Wi-Fi / Bluetooth Module (WL1837MOD)
  • 4x USB 3.0 ports
  • SATA
  • CAN
  • QSFP+
  • Pmod port
  • UART to USB Bridge (CP2103) with Mini USB B connector
  • Xilinx JTAG Connector for Zynq PL

Memory

  • 4GB RAM - DDR4 Programmable Logic
  • 4 GB DDR4 SODIMM memory for the processing system
  • 2GB NAND memory
  • Micro SD support up to 32GB
  • 256MB QSPI flash memory
  • 64Kb EEPROM

Others

  • 4x user dip switches
  • 6x User LEDs
  • Pushbuttons for PL & Reset PS
  • Accelerometer
  • Temperature Sensor
  • SYSMON
  • Current Monitor

FMC Daughter Boards

To remove the peripheral devices, the board contains 2 × FMC (1 × HPC and 1 × LPC) VITA 57.1-2010-compliant. Thus, possible devices can become FMC daughter cards owned by Aldec and others. Communication and networking is possible via × 2 Gigabit Ethernet, Wi-Fi and Bluetooth, CAN, Pmod, 4 × USB 3.0, USB to UART Bridge, SATA and QSFP + connection. Multimedia interfaces are received via DisplayPort, HDMI IN / OUT. To remove the peripheral devices, the board contains 2 × FMC (1 × HPC and 1 × LPC) VITA 57.1-2010-compliant. Thus, possible devices can become FMC daughter cards owned by Aldec and others. Communication and networking is possible via × 2 Gigabit Ethernet, Wi-Fi and Bluetooth, CAN, Pmod, 4 × USB 3.0, USB to UART Bridge, SATA and QSFP + connection. Multimedia interfaces are received via DisplayPort, HDMI IN / OUT. To remove the peripheral devices, the board contains 2 × FMC (1 × HPC and 1 × LPC) VITA 57.1-2010-compliant. Thus, possible devices can become FMC daughter cards owned by Aldec and others.
