Description

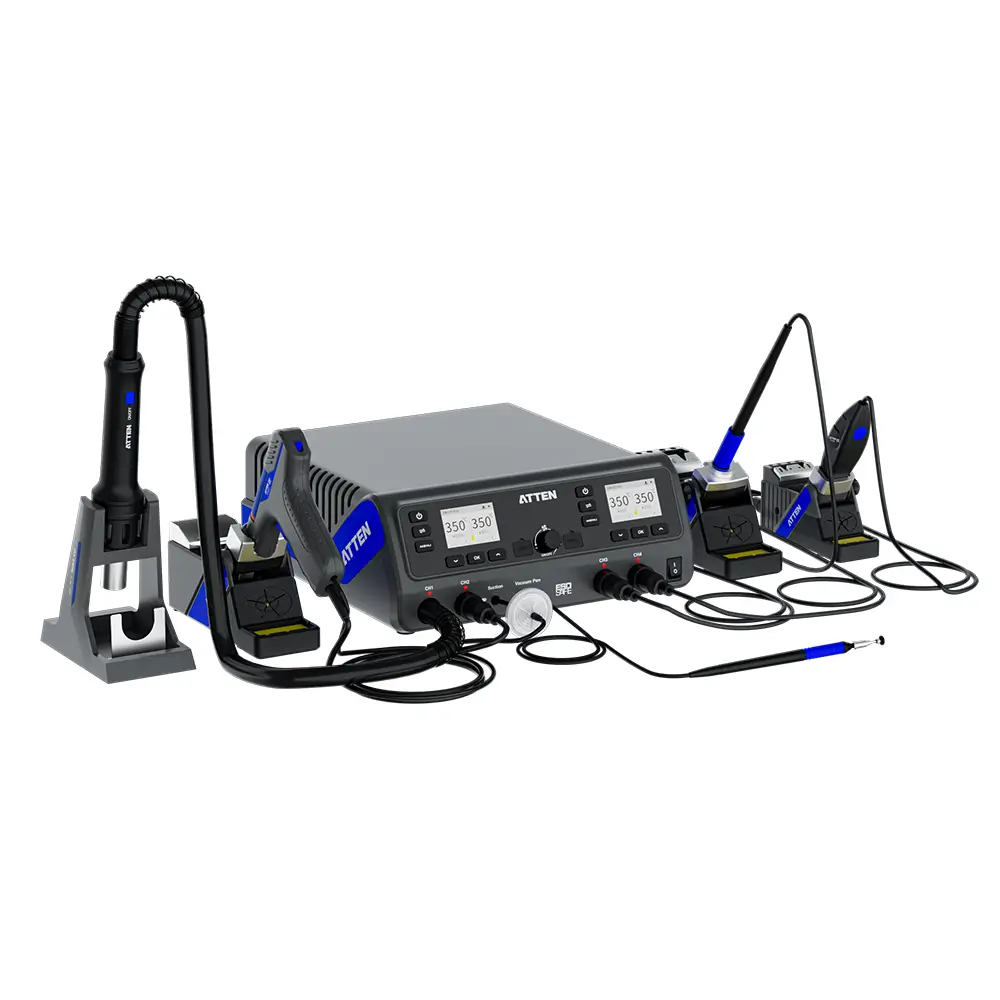

The ATTEN MS-1600 combines soldering, desoldering, hot air rework, and thermal desoldering with tweezers in a single station. Four independently usable tool channels facilitate switching between different work steps when repairing and reworking electronic assemblies.
The basic equipment includes the GT-Y151 soldering iron, the GT-X151 desoldering gun, the SP-202D hot air tool, and the GT-N080 thermal tweezers. An integrated vacuum generator supports the desoldering function; a vacuum pickup tool is used to pick up components.
Features
- Four tool channels for soldering, desoldering, hot air and thermal tweezers
- Independent and simultaneous use of the channels
- Automatic tool recognition
- TFT color display
- Integrated vacuum generator
- Vacuum holding tool for components
- Software-supported temperature adjustment
- Automatic standby and sleep mode
- Password function for settings
- RS-485 and USB interfaces
The MS-1600 is suitable for workstations where wired and surface-mount components are machined. The tool channels can be set independently and used simultaneously. Automatic tool recognition and the TFT color display support operation.
Standby and sleep modes, a password function, and software-controlled temperature adjustment round out the features. The manufacturer specifies RS-485 and USB interfaces. The power supply versions are separate: the 230 V version is rated at 1600 W, and the 120 V version at 1500 W.
Technical Data
| Model |  MS-1600 |
|---|---|
| Product number | MS-1600 |
| Tool channels | 4, independently and simultaneously usable |
| Rated power – 230 V version | 1600 W |
| Mains input – 230 V version | AC 220–240 V, 50 Hz |
| Rated power – 120 V version | 1500 W |
| Mains input – 120 V version | AC 110–120 V, 60 Hz |
| Peak-to-Earth resistance | ≤ 2 Ω |
| Top-Earth Potential | ≤ 2 mV |
| Advertisement | TFT color display |
| Communication interfaces | RS-485, USB |
| Dimensions of main unit (L × W × H) | 300 × 295 × 125 mm |
| Weight of main unit | approx. 11.7 kg |
