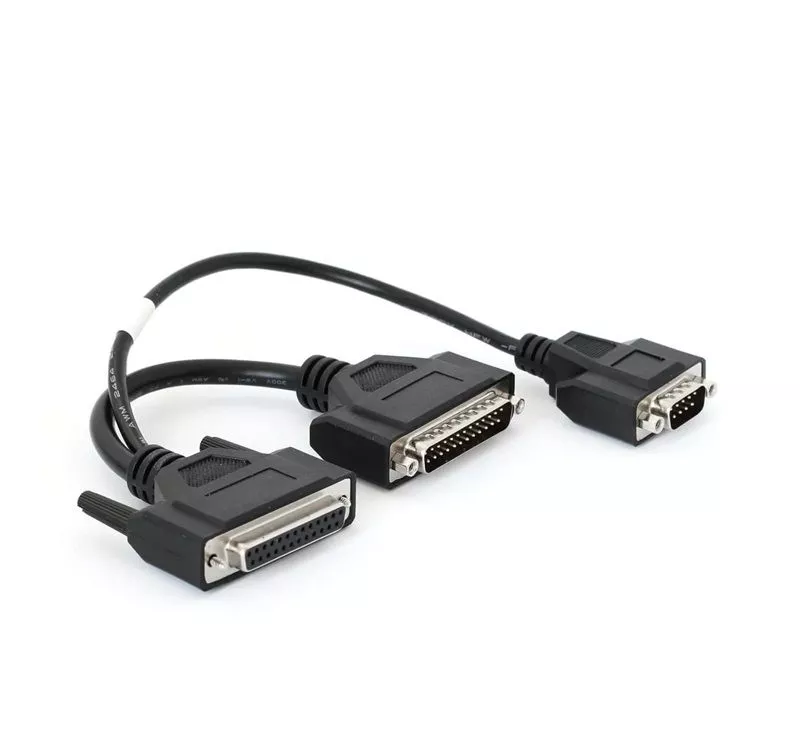

CSS Electronics DB25-DB25/DB9 cable

You can use this cable to redirect the power supply to analogue/digital/pulse sensors.

€50.00*

Volume discounts on request!

incl. VAT. (inactive)

Prices excl. VAT plus shipping costs

1 year guarantee

Delivery time: 2-5 days

Further information

Product number: CSS-DB25-DB25-DB9

Manufacturer: CSS Electronics

DB25-DB25/DB9 cable

Offer

Description

The DB25-DB25/DB9 adapter cable makes it easy to redirect power from your CANmod/CANedge to your input sensors.

This allows you to easily power most analogue/digital/pulse sensors as long as the required supply matches your CANmod/CANedge (e.g. 12 V or 24 V). Essentially, the DB25 pinout (male) of the adapter is identical to that of the CANmod.input, but effectively "replaces" the 3.3 V excitation signal from the CANmod.input with the more powerful power supply used to power your CANmod/CANedge.

Example installations

The cable is typically used in two installation scenarios:

Standalone: If your CANmod.input is connected directly to a vehicle/machine CAN bus, it is normally supplied with power via 7-28 V DC. In this case, the adapter cable can use the power supply of the CANmod.input directly to supply the sensors
Additionally: If your CANmod.input is supplied with power via a CANedge 2nd port 5V power supply unit (on pin 1), this cannot be used directly as a supply for the DB25-DB25/DB9 adapter. Instead, you can redirect the power supply fed to the CANedge (7-32 V DC).

In both scenarios, you can use our DB9-DB9/DB9 adapter to split the power supply from the CANedge/CANmod and redirect it to your input sensors via the DB25-DB25/DB9 adapter.
