The Intel ISP Adapter-C is used to connect the SF600-G2,SF600Plus and EM100Pro-G2 to the Intel motherboard.
€20.00*
Content: 1
In Stock, Delivery time: 1 - 3 days
More Information
Product number: ISP-ADP-intel-C
Manufacturer: Dediprog
Description

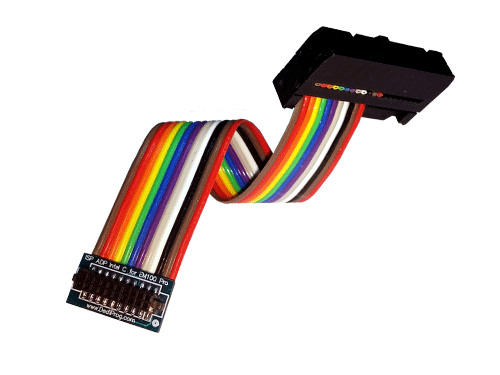

The Intel ISP adapter C is for connecting EM100Pro-G2, SF600-G2 and SF600Plus to Intel motherboards.
Suitable for the Intel 2x10 connector (Samtec: ASP-159358-02 or TFM-110-02-S-D-A).
The cable length is about 8 cm.
Supports Quad IO.
| Intel ISP Adapter C Pin Out | |||
|---|---|---|---|
| 1 | KEY | CS0 | 2 |
| 3 | RESET | CS1 | 4 |
| 5 | GND | VCC | 6 |
| 7 | CLK | DQ2 / WP | 8 |
| 9 | DQ3/HOLD | MISO | 10 |
| 11 | x | MOSI | 12 |
| 13 | x | x | 14 |
| 15 | x | x | 16 |
| 17 | x | x | 18 |
| 19 | x | x | 20 |
| Naming Variations | |||
|---|---|---|---|
| SF600-G2/SF600Plus/EM100 Connector | Intel Adaptor | ||
| Pin | Signal | Pin | Signal |
| 2 | CS2 | 4 | CS1 |
| 3 | CS1 | 2 | CS0 |
| 4 | VCC | 6 | VCC |
