The Intel ISP adapter A is used to connect the SF100 to the Intel motherboard.
Volume discounts on request!
€20.00 Net
€23.80 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Further information
Description

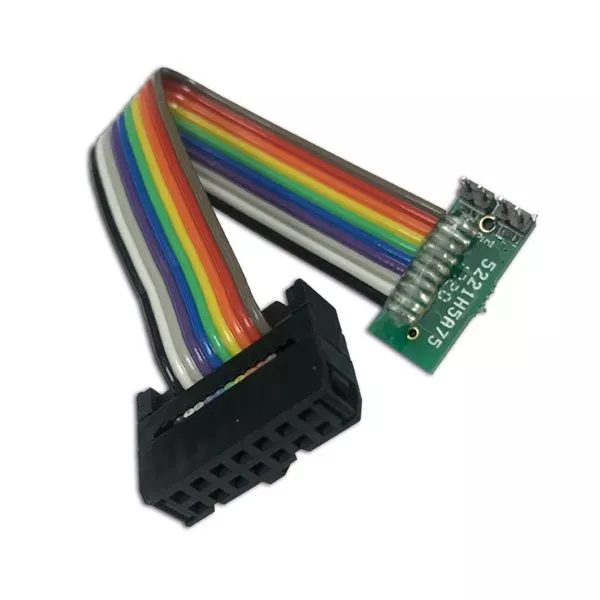

The Intel ISP adapter A is used to connect the SF100 to the Intel motherboard.
It is equipped with the Intel 2x10 connector (Samtec: ASP-159358-03).
The cable length is about 8 cm.
| Intel ISP Adaptor A Pin Out (2x10) | |||
|---|---|---|---|
| 1 | Key | CS0 | 2 |
| 3 | RESET | CS1 | 4 |
| 5 | GND | VCC | 6 |
| 7 | CLK | DQ2/WP | 8 |
| 9 | DQ3/HOLD | MISO | 10 |
| 11 | x | MOSI | 12 |
| 13 | x | x | 14 |
| 15 | x | x | 16 |
| 17 | x | x | 18 |
| 19 | x | x | 20 |
| Naming variations | |||
|---|---|---|---|
| SF100 connector | Intel Adaptor | ||
| Pin | Signal | Pin | Signal |
| 3 | I/O2 or CS2 | 4 | CS1 |
| 5 | VCC | 6 | VCC |
| 7 | CS | 2 | CS0 |
| 12 | I/O3 | 3 | Reset |
