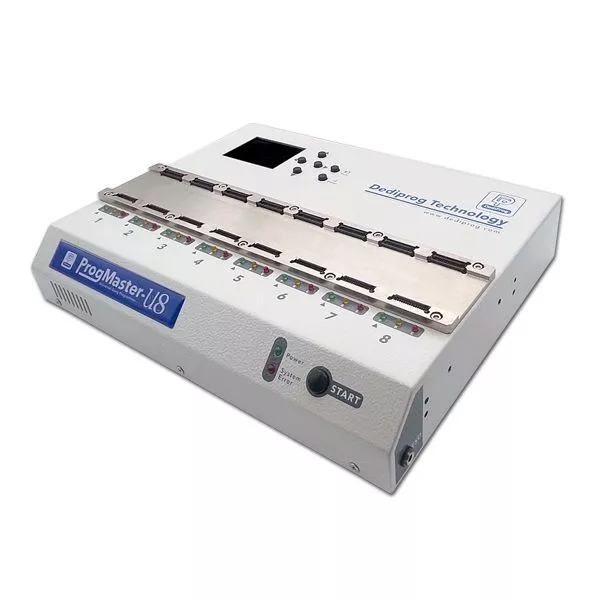

ProgMaster-U8 is a universal gang programmer, allows you to program 8 IC at a time and able to program various IC kinds!
€4,050.00*
Content: 1
Delivery time: 1-2 weeks
Further information
Product number: ProgMaster-U8
Manufacturer: Dediprog
Description
ProgMaster-U8 is an extremely high speed gang programmer that supports all IC families on the market. Equipped with 8 programming slots and an LCD keyboard that allows stand-alone functionality. The ProgMaster-U8 has been designed and optimized to achieve the maximum performance of the ICs without compromising on the programming quality, stability and reliability, making it the best device for mass production.
Features
- Built-in high-speed processor for fast programming speed.
- Comprehensive IC support and packages of all kinds
- EEPROM, MCU, SPI NOR/NAND Flash, Parallel NOR/NAND Flash, eMMC/eMCP, CPLD, FPGA...etc.
- DIP, SOP, SSOP, TSOP, PLCC, QFN, BGA...etc.
- Software supports NAND FLASH Skip Bad Block and partition programming.
- Built-in memory card slot for project programming
- Save project files to SD card for more stable and faster transfer.
- One computer can be connected to several ProgMaster-U8 at the same time.
- With the stand-alone function, you can program without a computer and only need to select and start the project programming via the LCD keyboard.
- Exclusive design to increase productivity
- You can start programming as soon as the project file is loaded; it also avoids human error when importing the project file or IC models.
- Three advanced working modes:
- A. Manual mode: Press the "Start button" to run the programming after inserting the ICs into all sockets.
- B. Auto-detection mode: each socket works independently. Programming is performed immediately after inserting the IC into the socket.
- C. Handler mode: Used in DediProg auto handler system.
| Timing Reference (P+V) | |
|---|---|
| MX25L1655D | 8s |
| S29GL064S | 16s |
| S34ML01G200T | 48s |
| STM32F302CCT | 9s |
| ST BlueNRG-132 | 21.5s |
Software modes
Expertmode
Allows access to advanced features such as defining custom commands for development or repair.
Productionmode
Production mode allows silmultaneous control of multiple programmers to increase throughput.
Command line mode
Allows control of one or more programmers via a user-defined program.
Supported ICs
With the help of the Dediware software and the ProgMaster-U8, a large number of ICs can be easily programmed. Our selection assistant gives you an insight into which ICs are already supported and which socket is suitable.
Technical Data
| Device Specification |  ProgMaster-U8 |
|---|---|
| Architecture | ARM and FPGA architecture with high density SDRAM |
| Internal Buffer | 2Gb RAM |
| External Memory Card | 32GB SD card |
| Protection Feature | Auto diagnose hardware function |
| Programming Interface | Socket Adaptor |
| Support IC Category | EEPROM, MCU, SPI NOR/NAND Flash, Parallel NOR/NAND Flash, CPLD, eMMC/EMCP |
| Suppot IC Package | DIP, SOP, SSOP, TSOP, PLCC, QFN, BGA, etc. |
| Operation Interface | 1. Start button 2. LED Power indicator 3. Pass/Busy/Error LED Lights 4. LCD control keypad (For stand-alone |
| PC Connection Interface | High Speed USB 2.0: 480 MB/s |
