The SF100 bottom board is used to enable offline programming for SPI flashes via the SF100 programmer.
Volume discounts on request!
€50.00 Net
€59.50 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Further information
Description

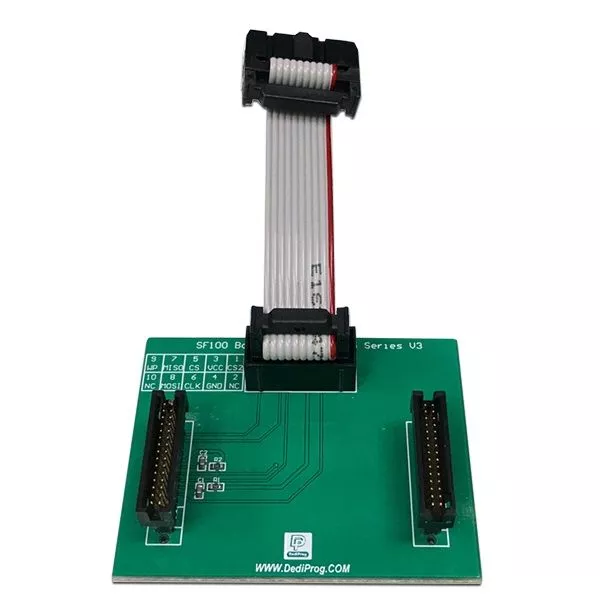

The SF100 Bottom Board is used to operate off-line programming for 25 series SPI flash memories via SF100 ISP programmer. User can directly use the SF100 ISP cable to connect SF100 Bottom Board & SF100 ISP programmer.
| SF100 Bottom Board Pin Out | |||
|---|---|---|---|
| 1 | CS2 | NC | 2 |
| 3 | VCC | GND | 4 |
| 5 | CS | CLK | 6 |
| 7 | MISO | MOSI | 8 |
| 9 | WP | NC | 10 |
