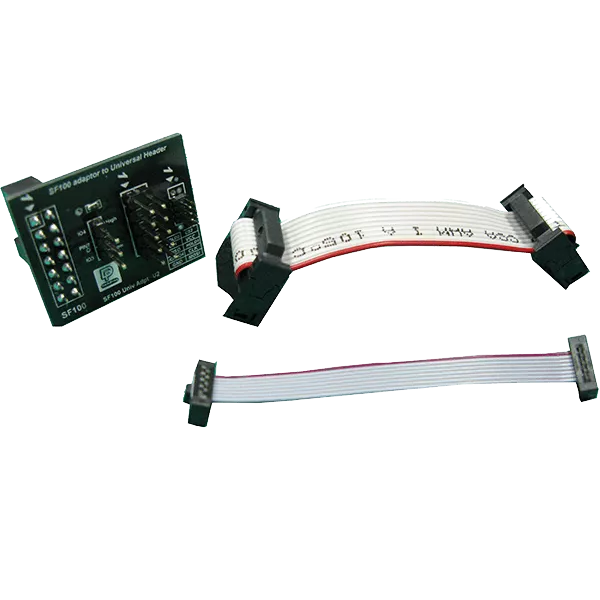

The universal adapter has a 2x5 pin out and is suitable for the SF100 programmer.
Volume discounts on request!
€30.00 Net
€35.70 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Further information
Description
The universal adapter has a 2x5 pin out and is suitable for the SF100 programmer.
| ISP Cable Connector Pin Out (2x5) | |||
|---|---|---|---|
| 1 | HOLD2 | CS2 | 2 |
| 3 | CS1 | VCC | 4 |
| 5 | MISO | HOLD1 | 6 |
| 7 | IO3/IO4 | CLK | 8 |
| 9 | GND | MOSI | 10 |
