Description

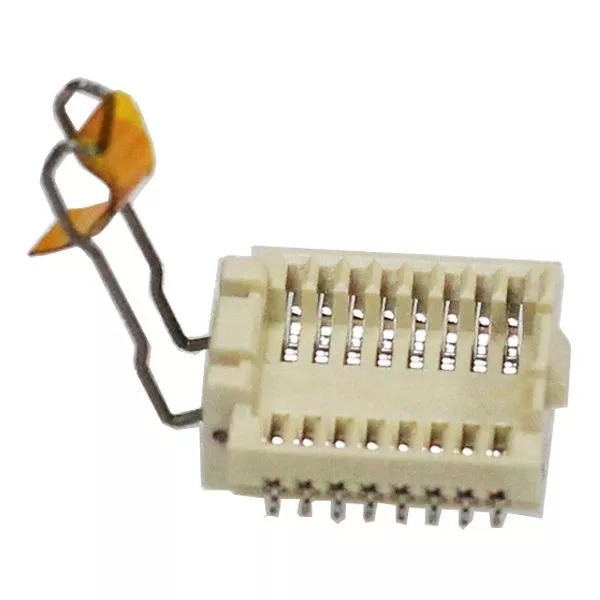

The socket is designed for chips with SO16W 300 mil package. The specification drawing only includes the pitch of the socket. If you want to use the IC directly without the SMT socket afterwards, then it is recommended to take the pin pitch of the pad configuration in consideration in the beginning of the design.
