Dediprog StarProg-A Universal On Board (ICP/ISP) Programmer
Product number: StarProg-A
Dediprog's StarProg-A supports MCU, CPLD, SPI NOR Flash, SPI NAND Flash and EEPROM On Board Programming (ICP/ISP).
Product is discontinued
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- This product has been discontinued by the manufacturer
Description

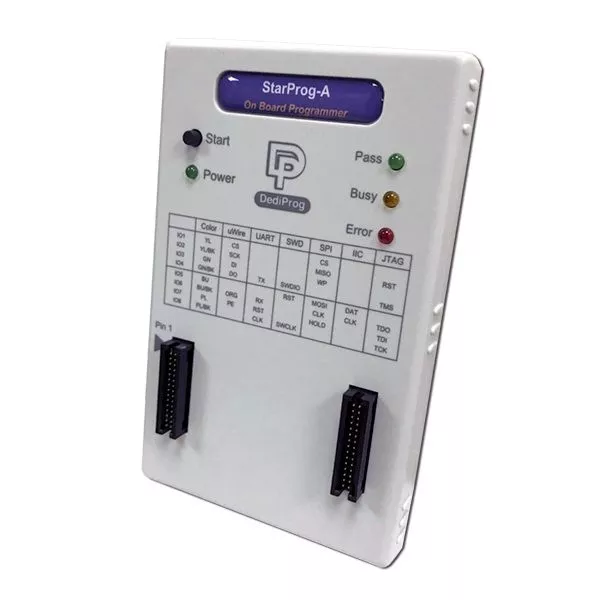

Dediprog's StarProg-A supports MCU, CPLD, SPI NOR Flash, SPI NAND Flash and EEPROM On Board Programming (ICP/ISP). The programmer is optimized for the integration of automated machines and can easily be used in development and mass production.
Hardware Features
- Optimized for integration into automated machines
- Support 1.2V ultra low voltage IC and 1.8V low voltage IC
- Supports multiple types of ISP protocols
- SWD, JTAG, SPI, I2C, BDM, UART and SWIM...
- Support for various IC families MCU, CPLD, SPI NOR Flash, SPI NAND Flash and EEPROM.
- Supports a variety of file formats such as Binary, Intel Hex, Motorola and ROM
- Supports stand alone mode
- Can program in standalone mode without being connected to a computer.
- Has a command line control option
- Provides Labview drivers and DLL API (supports serialization and key programming) for redevelopment and integration.
Applications
- Update of the serial flash soldered on board with or without power supply in standalone or PC GUI mode
- Prototypes or small series production, in-system or socket programming
- Control application, controller reset and MOSFET isolation status
- Integration into machines for automated programming
Integration optimizations
- Ability to start a simple & quick self-test.
- Signal improvements allow for significantly longer signal cable lengths for easier integration.
- Voltage and frequency control by the software allows stabilization of the programming signal.
- The ATE port in the ISP adapter allows remote control via busy/pass/error and start pins.
- Various adapters are available, and programmable ICs can be programmed online, offline, or standalone to quickly troubleshoot and eliminate any production issues.
- Support multiple programmers to program ICs simultaneously (same file).
| Pin | Color | uWire | UART | SWD | SPI | IIC | JTAG |
|---|---|---|---|---|---|---|---|
| IO1 | YL | CS | - | - | CS | - | - |
| IO2 | YL/BK | SCK | - | - | MISO | - | RST |
| IO3 | GN | DI | - | - | WP | - | - |
| IO4 | GN/BK | DO | TX | SWDIO | - | - | TMS |
| IO5 | BU | - | - | RST | MOSI | DAT | - |
| IO6 | BU/BK | ORG | RX | - | CLK | CLK | TDO |
| IO7 | PL | PE | RST | - | HOLD | - | TDI |
| IO8 | PL/BK | - | CLK | SWCLK | - | - | TCK |
| Pin header mapping | |||
|---|---|---|---|
| Pin lin1 | Pin number | Pin lin2 | |
| Vpp | 1 | 2 | Vcc |
| Vpp_ref | 3 | 4 | Vcc_ref |
| 3.3V | 5 | 6 | GND |
| IO1 | 7 | 8 | IO2 |
| IO3 | 9 | 10 | IO4 |
| IO5 | 11 | 12 | IO6 |
| IO7 | 13 | 14 | IO8 |
| GPIO1 | 15 | 16 | GPIO2 |
| GPIO3 | 17 | 18 | GPIO4 |
| GND | 19 | 20 | GND |
| ATE Port | |||
|---|---|---|---|
| Pin lin1 | Pin number | Pin lin2 | |
| NC | 1 | 2 | 3.3V |
| Busy | 3 | 4 | GND |
| Pass | 5 | 6 | NC |
| Start | 7 | 8 | NC |
| Fail | 9 | 10 | NC |
Supported ICs
With the help of the Dediware programming software, a large number of ICs can be easily flashed. Our selection assistant gives you an insight into which ICs are already supported.
Technical Data
| Model comparison |  SF100 |  SF600 Plus |  SF700 |  K110 |  StarProg-A |  StarProg-U |  NuProg-E2 |
|---|---|---|---|---|---|---|---|
| Supported IC types | SPI NOR Flash | SPI Flash NOR | SPI NOR, SPI NAND and SPI Octa NOr | SPI NOR, SPI NAND, and EEPROM | MCU, CPLD, SPI NOR Flash, SPI NAND Flash, and EEPROM | All IC Types (Except UFS) | UFS (Up to 180 MB/s) eMMC (Up to 100 MB/s) |
| In system programming | ✓ | ✓ | ✓ | ✓ | ✓ | X | X |
| Socket programming | ✓ Mit Bottom Board (Optional) | ✓ One programming site (site) | ✓ One programming site (site) | ✓ One programming site (site) | ✓ One programming site (site) | ✓ One programming site (site) | ✓ One programming site (site) |
| Standalone | X | ✓ | ✓ | ✓ | ✓ | X | X |
| Software | SF Software | SF Software | SF Software | Dediware | Dediware | Dediware | Dediware |
| 3rd Party Integration | CLI | CLI | ATE Port, CLI | ATE Port, CLI | ATE Port, CLI, DLL API (Optional) | CLI | X |
