Description

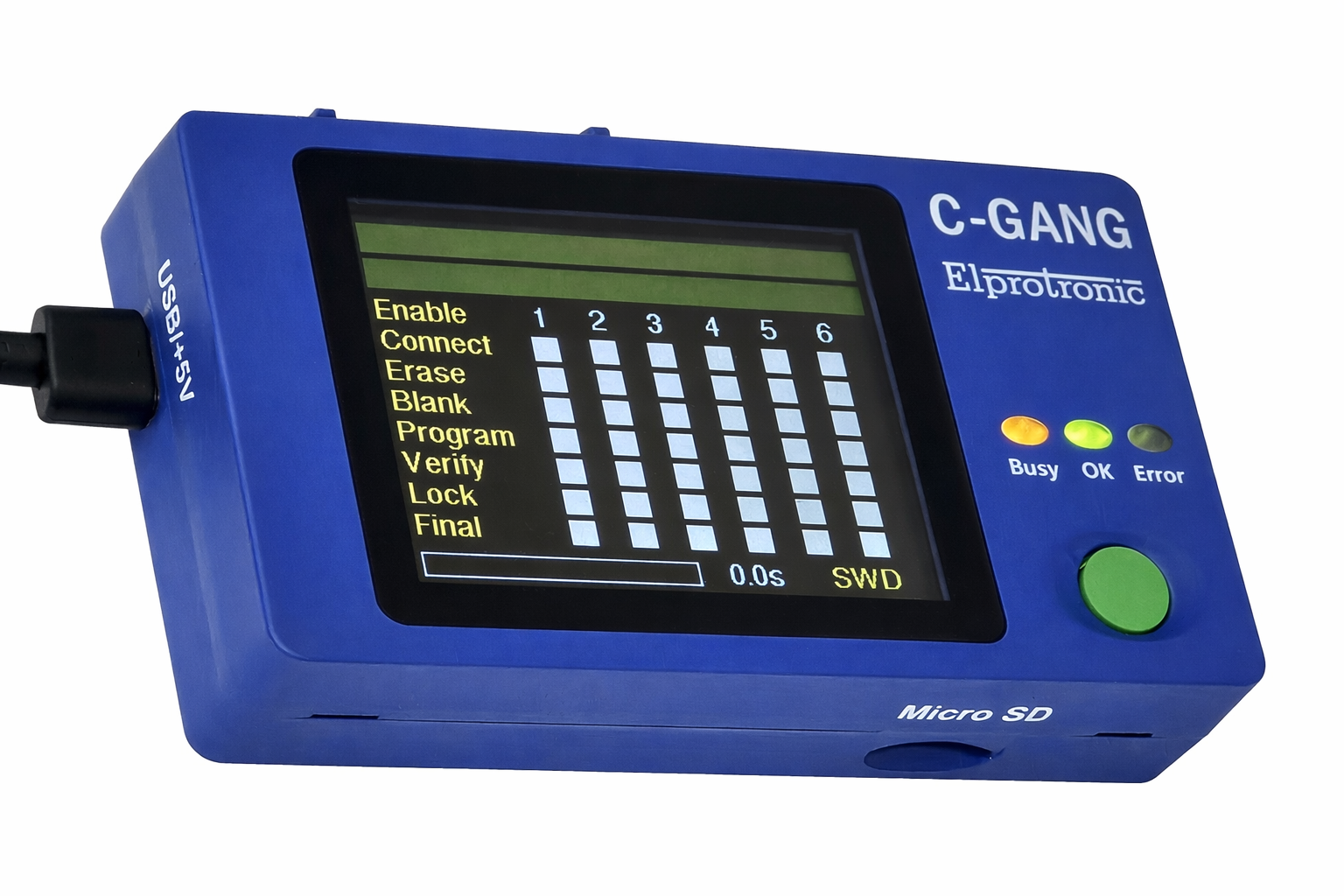

The C-GANG-X is a compact gang programmer for development, service and production. The system programs up to six targets in parallel and can operate either standalone or under PC control.
With USB-C, internal image storage, optional MicroSD expansion and proxy programming for external SPI flash/EEPROM devices, the C-GANG-X fits flexible programming cells with limited space.
Features
- Programs up to 6 targets in parallel
- Standalone and PC-interactive operation
- Up to 8 MB total image from internal flash in standalone mode
- USB-C interface to the PC
- Support for Windows and Linux
- Proxy programming of external SPI flash/EEPROM devices
- Programmable target supply from 1.65 V to 5 V
- Programmable target clock from 1 MHz to 20 MHz
- CLI plus C++, C# and LabView support with demo applications
The C-GANG-X is designed for compact production and service workflows. Beyond parallel device programming, the platform supports serialization, functional test, quota handling and operation of multiple programmers from one PC.

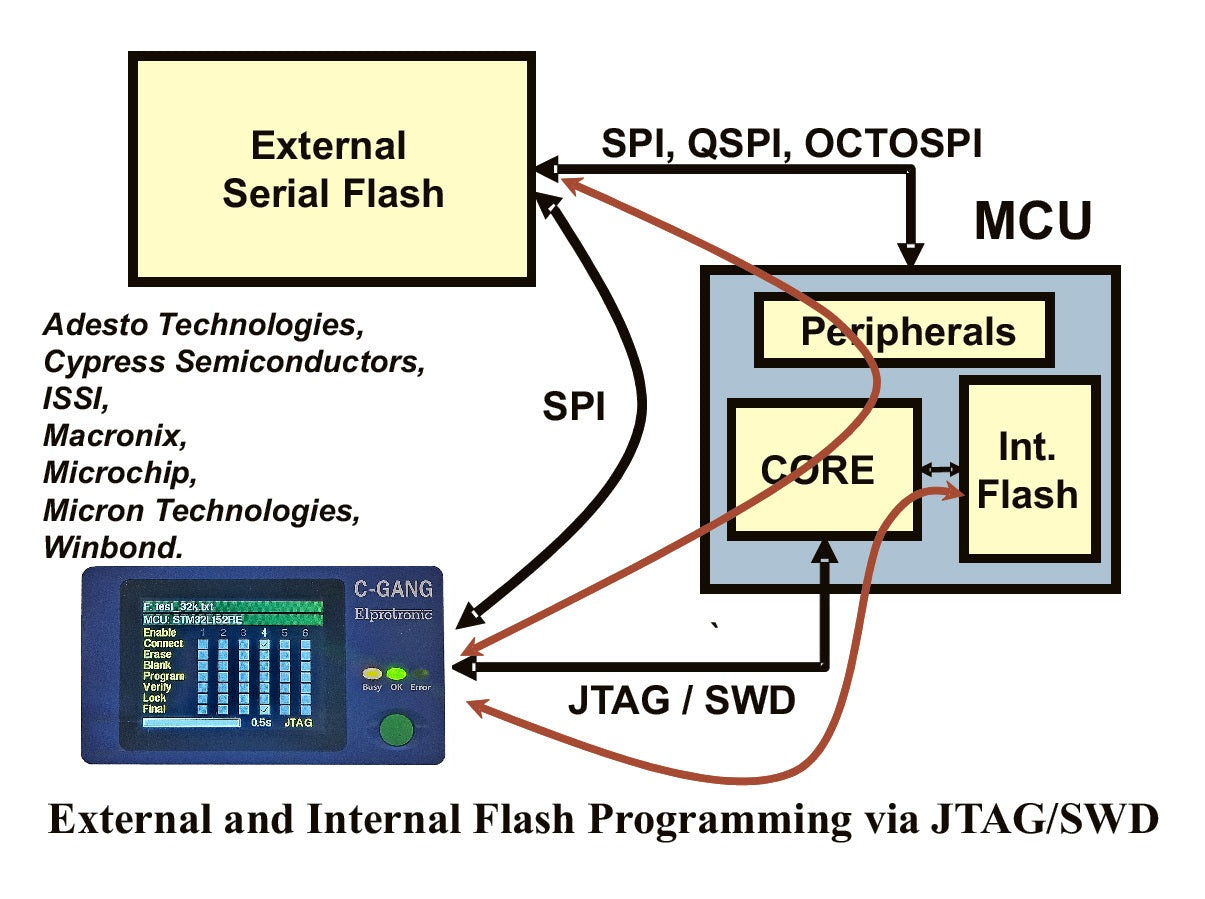

For external memories, the C-GANG-X can work directly over SPI/QSPI or via the target MCU as a proxy, enabling integration into different fixtures and test adapters.
Technical Data
| Programming channels | Up to 6 targets in parallel |
|---|---|
| Operating modes | Standalone and PC-interactive |
| Internal standalone storage | Up to 8 MB total image |
| Host interface | USB-C |
| Host systems | Windows 32/64-bit, Linux |
| Target supply Vcc | 1.65 V to 5 V |
| Programmable target clock | 1 MHz to 20 MHz |
| Unterstützte Protokolle | ARM: JTAG, cJTAG, SWD; MSP430: JTAG, SBW, BSL; STM8/RL78: SWIM/UART; iMOTION 2.0: SWD, UART; SPI Flash: SPI, QSPI |
|---|---|
| Geplante Erweiterungen | AVR/PIC via JTAG/SPI/TPI/PDI/UPDI und C2000 via JTAG laut Herstellerseite mit geplantem Software-Update |
| Weitere Funktionen | Serialisierung, Funktionstest, Quota, Parallel-Gang-Programmierung |
| API/Automation | CLI sowie C++, C# und LabView mit Demo-Anwendungen; bis zu 64 Programmer an einem PC |
| MCU-/Speicherfamilie | Beispiele laut Hersteller |
|---|---|
| ARM | TI MSPM0, MSP432, SimpleLink CC ARM-basiert, TMxC; ST STM32, BlueNRG; SiLabs EFR32, EFM32, SiM3, EM_3xxx; Renesas RA; NXP Kinetis, LPC, K32L/W, S32K; Nordic nRF; Microchip SAMx; Maxim MAX; Marvell 88M; Infineon FMx, PSoC; GigaDevice GD32; Analog Devices ADuCM; Active-Semi PAC |
| Weitere Targets | MSP430, STM8, RL78, SPI External Flash; weitere AVR/PIC, C2000 und SimpleLink 8051 Erweiterungen laut Herstellerseite geplant |
