Description

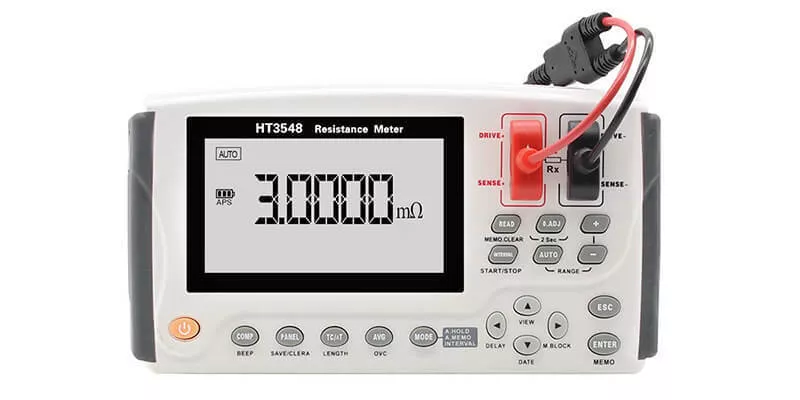

The HT3548 Precision DC Resistance Tester is one of the most accurate DC Resistance Testers in the industry. The HT3548 DC resistance tester has a 4.3 inch display and has a measuring range of 3mΩ to 3MΩ. Due to the minimum resolution of 0.1 μΩ and a measurement accuracy of 0.02%, the resistance tester is well suited for inspection of converter motors and other applications that require high-resolution resistance measurement. Equipped with RS232/RS485/LAN interfaces and EXT I/O port, the devices of the HT3544 resistance tester series are suitable for performing automatic tests in test or production lines.
Features
- Offers 0.02% basic accuracy, 0.1μΩ minimum resolution, 1A maximum test current
- With measurable range 0.1μΩ~3.3MΩ.
- Anti-interference measurement is achieved by protecting the probe used by the port and increasing the test current.
- Sorting indicator (option) with loud volume can accurately judge whether it is qualified or not at the production site.
- Equipped with RS232/RS485/LAN interfaces and EXT I/O port, the HT3544 multi-channel ohmmeter is particularly suitable for supporting the ATE line to perform automatic tests.
- Compact and portable structure with powerful function
- Unique test lead length function
- Unique 300mA current test
- The reading is automatically held and saved
- Has a stable reading (averaging function)
- With thermoelectric compensation function (OVC)
Application areas of the HT3544 series
The devices of the HT3548 series have a wide range of application fields. Various resistances with high, medium and low values, various switching contact resistances, connection resistances, relay line packages, contact resistances, transformers, inductors, motors, winding resistances of a deflection coil, wire resistances and more can be measured.
Other fields of application
Cables
Measurement of cable resistances
Engines
Measurement of the engine resistance
Electronic components
Measuring the resistance of electronic components
Sensors
Measuring sensor resistances
Technical Data
| Device specification |  HT3548 |
|---|---|
| Channels | 1 |
| Display | 4.3 inch TFT LCD display |
| Measurement parameters | ESR | Temperature |
| Basic Accuracy | 0.1%±10 reading (3mΩ,30mΩ,3MΩ); 0.05% ± 4 readings; 0.02% ± 2 readings (the other areas) |
| Measuring range | 3mΩ / 30mΩ / 300mΩ / 3Ω / 30Ω / 300Ω / 3kΩ / 30kΩ / 300kΩ / 3MΩ |
| Measurement speed | 5 measurements per second |
| Maximum test current | DC 1A | Max 5.5V |
| Temperature | Range -10°C ~60°C | Accuracy ±1°C |
| Internal Storage | Up to 2400 records |
| Correction | Short circuit reset |
| comporator | HIGN/IN/LOW sort, 10 bin out |
| Trigger Modes | Internal / external / manual trigger |
| Internal data storage | Support with PC software and storage in PC |
| signal source | AC 1kHz | Test current: <150mA |
| Resolution | 0.1μΩ |
| Other functions | Temperature correction, line frequency setting |
| Interfaces | USB, External |
| Power (max) | 2.5W |
| Power supply | Voltage: 100VAC～256VAC | Frequency: 50Hz～60Hz; |
| Dimensions & weight | 208mm (L) x 120mm (W) x 52mm (D) | 0.81kg |
