€136.00*
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
In Stock, Delivery time: 1 - 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Description

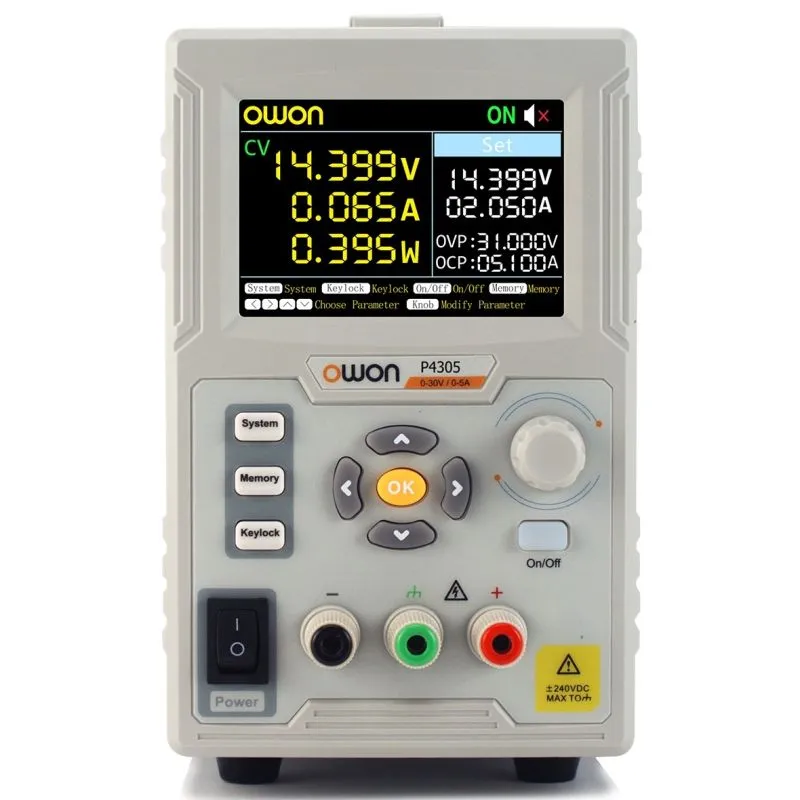

The Owon P4305 is a programmable 1-channel linear DC laboratory power supply from the P4000 series. With a maximum output power of 150 W (30 V / 5 A), it combines a compact design with high precision and reliability.
Thanks to a resolution of 1 mV / 1 mA and a setting accuracy of ≤0.03 % + 10 mV / ≤0.1 % + 5 mA, the device is suitable for demanding applications in research, development, training and quality assurance.
The 3.7″ colour LCD clearly displays voltage and current values. Protective functions such as overvoltage and overcurrent protection (OVP/OCP) and an intelligent cooling system ensure safe operation. the device can also be integrated into automated measurement environments via the RS232 interface (SCPI and LabVIEW support).
With 5 memory locations for configurations, frequently used settings can be recalled quickly. Applications range from component testing and ageing experiments to battery characterisation and automotive electronics testing.
Features
- 180W maximum output power
- Low ripple/noise
- overvoltage/overcurrent protection
- Multi-directional cooling system with intelligent fan
- Supports digital RS232 communication
Technical Data
| Model |  P4305 |
|---|---|
| Channels | 1 |
| Max. Output voltage | 0 - 30 V |
| Max. Output current | 0 - 5 A |
| Max. Output power | 150 W |
| Resolution (setting/readback) | 1 mV / 1 mA |
| Setting accuracy (25 °C ±5 °C) | U: ≤0.03 % + 10 mV / I: ≤0.1 % + 5 mA |
| Load and mains regulation | U: ≤0.01 % + 3 mV / I: ≤0.01 % + 3 mA |
| Ripple & noise (20 Hz-20 MHz) | U ≤4 mVp-p / ≤1 mVrms, I ≤4 mArms |
| Response time | 100 µs |
| Memory locations | 5 |
| Display | 3.7″ colour LCD |
| Interface | RS232, SCPI, LabVIEW support |
| Protection functions | OVP (overvoltage), OCP (overcurrent) |
| Dimensions (L×H×D) | 117 × 194 × 295 mm |
| Weight | approx. 5.6 kg |
