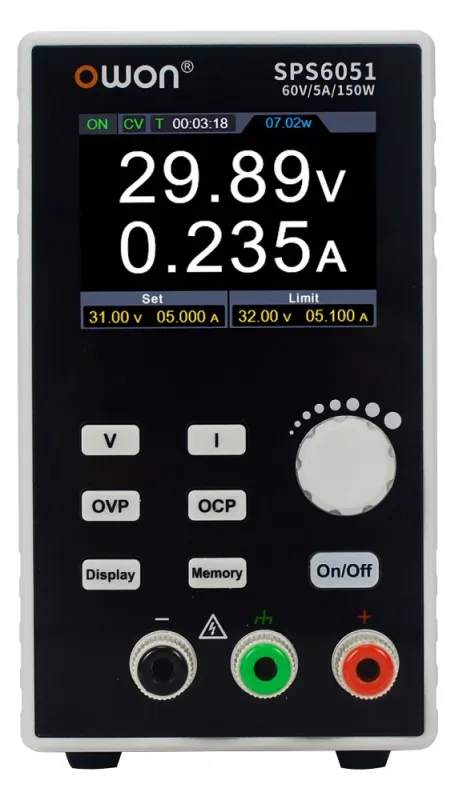

The Owon SPS6051 power supply unit is fanless, delivers max. 150W at max. 60V / 5A and has one channel.
€111.00*
Content: 1
Volume discounts on request!
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
In Stock, Delivery time: 1 - 3 days
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: SPS6051
Description
The OWON SPS series comprises fanless, programmable 1-channel DC power supply units that are ideal for laboratories, training and development thanks to their compact design and quiet operation.
The devices have a high resolution of 1 mV / 1 mA, a 2.8″ colour LCD for clear display of voltage and current values and common protection functions such as OVP (overvoltage protection) and OCP (overcurrent protection).
Thanks to the programmable list function, voltage and current sequences can be played back, enabling automated tests. Four memory locations (M1-M4) allow quick access to frequently used settings. The fanless operation makes the devices virtually noiseless.
Features
- Fanless design: Extremely quiet and reduces vibration noise and potential failure risks of conventional cooling fans.
- Excellent heat dissipation design: Long-term operation under full load conditions ensures a controlled temperature rise and thus a long service life of the internal components.
- Lightweight and ultra-thin design.
- Output accuracy up to 10 mV/1 mA.
- Support for editing and output of waveforms in list form, 4 groups of memory link parameters
- Memory link parameters for fast output.
- Built-in protection functions include overvoltage, overcurrent, overtemperature and input undervoltage.
- The output has an integrated discharge circuit to avoid residual risks from high voltage when the power supply is switched off.
- Provides a USB communication interface and supports the SCPI protocol, which enables PC programming and remote control and simplifies remote management by the user.
- 2.8-inch TFT LCD screen
Technical Data
| Model |  SPS6051 | SPS3081 |
|---|---|---|
| Channels | 1 | 1 |
| Max. Output voltage | 0-61 V | 0-31 V |
| Max. Output current | 0-5.1 A | 0-8.1 A |
| Max. Output power | 150 W | 120 W |
| Resolution (setting/readback) | 10 mV / 1 mA | 10 mV / 1 mA |
| Display | 2.8″ TFT LCD | 2.8″ TFT-LCD |
| Cooling | fanless | fanless |
| Protection functions | OVP, OCP (plus UVLO/OTP according to dealer) | OVP, OCP (plus UVLO/OTP as per dealer) |
| Programming | Lists/sequence, M1-M4 Memory | Lists/sequence, M1-M4 memory |
| Interfaces | USB (PC/SCPI) | USB (PC/SCPI) |
