The Owon XDM2041 desktop multimeter with 4 1/2 digits and 65 measurements per second.
€128.00*
Content: 1
Volume discounts on request!
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
No longer available
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: XDM2041
Description

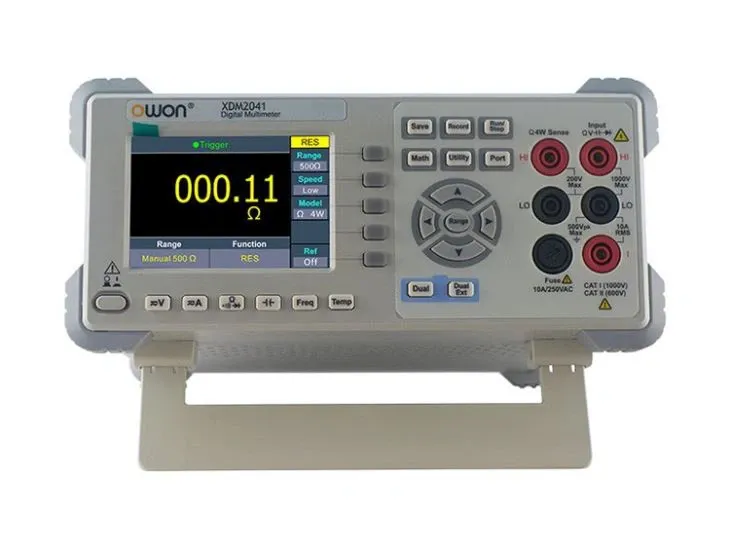

The OWON XDM2041 is a high-precision desktop multimeter with 4½ digits that is ideal for laboratory, workshop and training applications where reliable measurements with changing signals are required. It offers true RMS measurement of AC voltage and current, dual-line display and a high measurement rate of up to 65 values per second.
The device has a sharp 3.7″ (≈ 480×320 pixels) LCD display, which also supports trend diagrams and chart mode for clear visualisation. interfaces such as USB, RS-232 and SCPI can be used to remotely control the multimeter and export measurement results. Internal memory functions enable data logging (e.g. up to 1000 measured values) with adjustable intervals.
Features
- 4½ digits, 55,000 counts
- True RMS for AC voltage & current
- Measurement rate up to 65 readings/second
- Dual line display & trend/chart mode
- LCD 3.7″ (480×320)
- Interfaces: USB, RS-232, SCPI support
- Data logging: memory function with up to 1000 data points and adjustable interval
- Measuring ranges: wide voltage and current ranges, resistance, capacitance, frequency, etc.
Technical Data
| Model |  XDM2041 |
| Display positions | 4½ |
| Counts | 55.000 |
| Reading speed | up to 65 values/second |
| Display | 3.7″ LCD, 480 × 320 pixels |
| True RMS | for AC voltage & current |
| Dual-line display | supports |
| Trend / Chart mode | yes |
| SCPI / remote control | USB, RS-232, SCPI compatible |
| Data logging | internal up to 1000 points, interval adjustable |
| DC voltage (maximum range) | 1000 V |
| AC voltage (maximum range) | 750 V |
| DC current (maximum range) | 10 A |
| AC current (maximum range) | 10 A |
| Resistance (maximum range) | 50 MΩ |
| Capacitance (maximum range) | 50 mF |
| Frequency range | up to ≈ 60 MHz |
