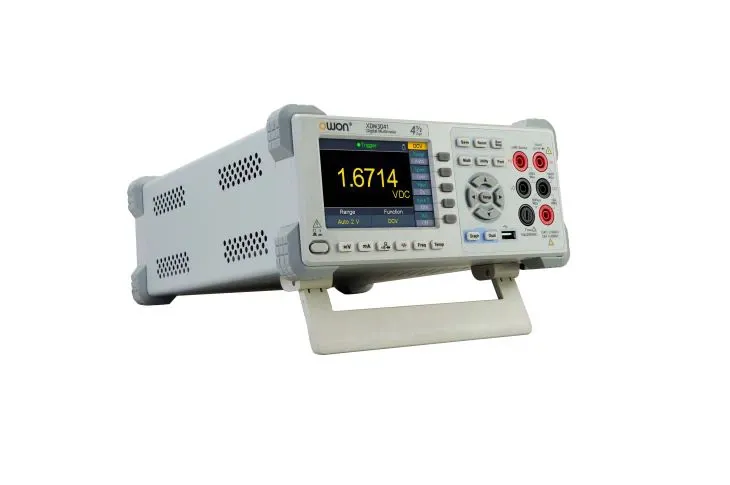

The Owon XDM3041 desktop multimeter with 4 1/2 digits and 150 measurements per second.
€304.00*
Content: 1
Volume discounts on request!
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
In Stock, Delivery time: 1 - 3 days
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: XDM3041
Description
The Owon XDM3041 digital desktop multimeter is a compact, inexpensive and high-precision measuring device that offers an impressive range of functions despite its small footprint. It is suitable for use in the laboratory as well as for training and service purposes. Thanks to the true RMS function, it measures AC voltage and current correctly even with distorted signal shapes. With a reading speed of up to 150 measured values per second, rapid signal changes can be reliably recorded.
Features
- High resolution: 55,000 counts for precise measurements.
- Measurement functions: DC/AC voltage, DC/AC current, resistance, capacitance, frequency, diode test, continuity test and temperature measurement.
- True RMS: Exact recording even with non-sinusoidal signals.
- Display options: Histogram, trend curves and bar chart for visual analysis directly on the device.
- Display: 4.0-inch colour display with clear presentation, operation via easily accessible pushbuttons.
- Interfaces: USB and LAN for PC connection, programming and remote control.
- Data storage: Direct storage of measurement results on USB storage media possible.
- Speed: Up to 150 readings/second.
- Compact design: Space-saving for use at the workplace or in mobile laboratories.
Technical Data
| Model |  XDM3041 |
| Resolution (digits) | 4½ |
| Display resolution (counts) | 55 000 |
| Reading speed | up to 150 readings/s |
| Display | 4.0″ LCD, 480 × 320 |
| True RMS | AC voltage & AC current |
| Double line display | supported |
| Interfaces | USB Device/Host, RS-232, LAN, external trigger |
| Remote control | SCPI supported |
| Data recording | Saving to USB storage media |
| DC voltage | 600 mV, 6 V, 60 V, 600 V, 1000 V |
| AC voltage (True RMS) | 600 mV ... 750 V |
| DC current | 600 µA, 6 mA, 60 mA, 600 mA, 6 A, 10 A |
| AC current (True RMS) | 60 mA, 600 mA, 6 A, 10 A |
| Resistance | 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 60 MΩ, 100 MΩ |
| Capacitance | Ranges according to specification (up to several mF) |
| Frequency/period | 200 mV ... 750 V; up to 1 MHz (depending on range) |
| Diode test | up to 3.0000 V |
| Continuity test | Threshold value 1000 Ω |
