Passmark ECC Tester

The Passmark ECC tester allows to determine whether the expected error correction function is working as expected.

€299.00*

In Stock, Delivery time: 1 - 3 days

Further information
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: PM141
Manufacturer: Passmark

Description

The Passmark ECC tester allows to determine whether the expected error correction function is working as expected.

Features

  • Test your ECC error detection and correction mechanisms.
  • Inject single and double bit errors in real time.
  • Test machines with CPU, motherboard and DDR4 RAM ECC support.
  • Suitable for use with MemTest86 and BurnInTest.

Why Test ECC Memory?

ECC memory (Error Correction Code) is a type of RAM that automatically detects and corrects memory errors via an additional memory chip. Appreciated by those who store and manage critical data on workstations and servers, ECC RAM is said to have a much lower failure rate and thus cause fewer crashes.

If you have ECC RAM installed, you can use the PassMark ECC tester to determine if the error correction features are working as expected.

ecc-ram

Extensive test options

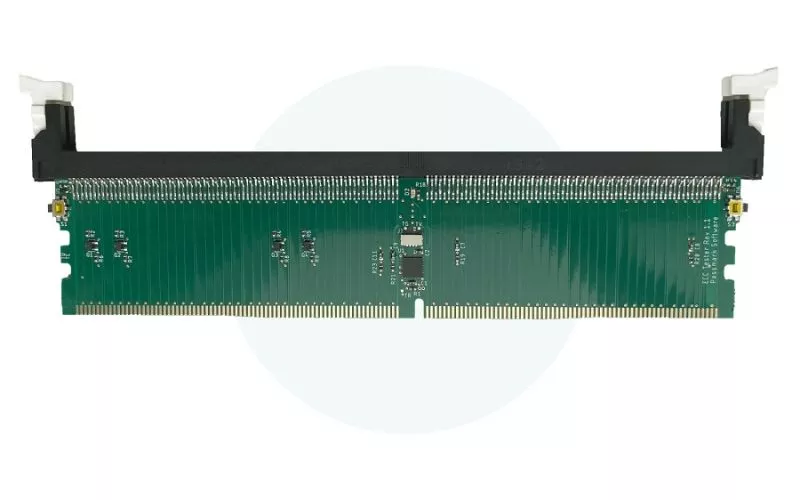

The PassMark ECC tester is a DDR4 DIMM interposer designed to insert single-bit and double-bit errors in real time to challenge the error detection and correction mechanism of computers with CPU, motherboard and RAM sticks with ECC support and to test.

The tester has 4 physical buttons that can be programmed to inject single errors or a sequence of errors when pressed and choose between breaking the data or checksum line.

montest_slide_1

The ECC tester is designed to put your ECC RAM inline on your motherboard and acts as an interposer used to inject single and double bit errors. It also connects to your system via USB to track results.

With the included USB connector, users can change the ECC tester setting, monitor voltages on the memory bus, and control MemTest86 and BurnInTest error injection.

motherboard_compatability


Every PassMark ECC Tester purchase includes access to ECCTest for Windows. Functionality includes:

Überwachen Sie die Spannungen auf Ihrem RAM.

  • Monitor the VTT, VREFCA, VPP, and VDD voltages on the RAM stick.
  • Record and save a log of the voltages on the RAM stick as it is in use.


Customize the type of errors generated.

  • Simple interface to program the type of error generated when a button is pressed on the ECC tester.
  • Customization options include creating single or recurring errors, and correctable or uncorrectable errors.
ecc_test
Test error detection and correction directly in MemTest86, no operating system required. During your memory tests, insert errors with the ECC tester to see if the system correctly detects ECC errors.
ecc_errors_memtest86

Connectivity

The ECC Tester is designed to put your ECC RAM inline on your motherboard and connects via USB.


Software Compatibility

With Memtest86, test error detection and correction directly in MemTest86, without the need for an operating system. During your memory tests, insert bugs with the ECC tester to see if the system correctly detects ECC bugs.

Productvideo

ECC Tester - Error Detection

Technical Data

Product Codeecc_tester-min-removebg-preview
PM141
Supported SDRAM ClassDDR4 (unbuffered or fully buffered)*
Onboard controllerARM Cortex M0
Memory6KB RAM, 32K Flash onboard memory
Host requirementsAny system using DIMM DDR4 RAM should work.
A Windows 10 or 11 system is required for one off (re)programming of buttons and voltage monitoring.
User Interface4x Programable Buttons
Error InjectionSingle bit or double bit error injection on DQ0, DQ2, CB0, CB2 lines
DQ lines are part of the data bus
CB lines are the check bits
Each line is controlled separately. 15 different error injection permutations are possible.
Line disruption pulse time is configurable between 1ms and 250ms.
Operational VoltageDevice is powered from USB: 3.5V – 6.0V, when connected
or from VDDSPD line on DIMM slot: 2.25V – 2.75V otherwise.
Operational Current30mA
Voltage MeasurementVDD, VPP, VREFCA and VTT at a sampling rate of 10ms.
Maximum Voltage RatingsVDD: +4V
VPP: +4V
VREFCA: +4V
VTT: +4V
Measurement Error (V)Better than 1%
PC CommunicationUSB 2 Full Speed
Optional USB connection is use to program the function of the buttons and monitor voltages
1m USB cable with low profile connector is supplied with the tester.
Dimensions147mm x 50mm x 5mm
(5.8 x 2.0 x 0.2 inches)
Typically total height of the interposer + a RAM module is 65mm. Check to ensure that there is enough clearance inside your case and from the CPU heatsink.
Weight25g (0.88 oz)
Storage Temperature-30 ºC to + 80 ºC
Usage Temperature0 ºC to + 50 ºC
RoHS (Lead Free)Yes
