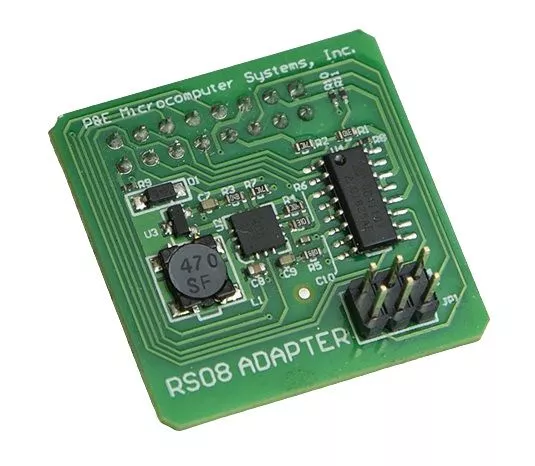

The latest hardware revision E of PEmicro's Multilink Universal requires this RS08 adapter in order for the device to communicate with NXP RS08 devices. The RS08 connection and the 6-pin pin assignment are described in the Multilink Universal user manual. If you already own a Multilink Universal, you can find information about the hardware revision on the label on the back. As shown in the image below, the adapter connects to the 16-pin header (Port E) of the Multilink Universal. The adapter thus offers a 6-pin header for connection to the target processor via ribbon cable.
- Compatible with PEmicro Multilink Universal
- Suitable for RS08 processors
- Required ribbon cable: CAB_RIBBON_6-PIN
