Description

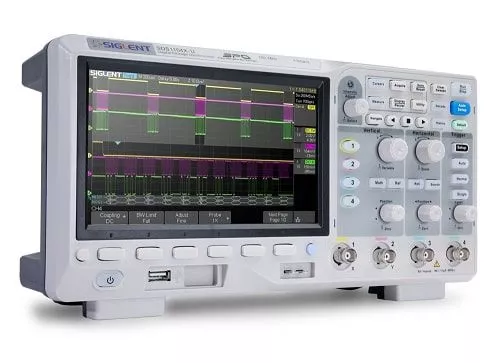

The SDS1104X-U series uses a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The SDS1104X-U oscilloscope is available in a bandwidth of 100 MHz. It has a maximum sampling rate of 1 GSa/s and a maximum recording length of 14 Mpts.
Features
- 100 MHz bandwidth
- Real-time sampling rate up to 1 GSa / s
- 128 kpts FFT, supports peaks and markers
- The latest generation of SPO technology
- Signal acquisition rates up to 100,000 wfm / s (normal mode) and 400,000 wfm / s (sequence mode)
- Supports 256-level intensity grading and color temperature display modes
- Record length up to 14Mpts and digital trigger system
- Intelligent trigger: edge, slope, pulse width, window, runt, interval, timeout (dropout), pattern
- Serial bus triggering and decoding (standard), supports IIC, SPI, UART, CAN, LIN protocols incl. video trigger, supports HDTV
- 10 types of one-button shortcuts, supports auto setup, standard, cursor, measure, roll, history, view / keep, clear sweep, zoom.
- Auto measurement function for 38 parameters, plus measurement statistics, zoom, gating, math, history, and reference functions.
- History waveform recording function (history) (maximum length of recorded waveform is 80,000 frames)
- Mathematical functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
- Large 7-inch TFT LCD display with 800 * 480 resolutionT LCD display with 800 * 480 resolution
- Segmented acquisition (sequence) mode divides the maximum record length into multiple segments (up to 80,000) according to the trigger conditions set by the user
- Bode plot function controls external generator (SIGLENT SDG or SAG generators, 4-channel models only)
Super Phosopor Oscilloscope
The parallel processing architecture of a super phosphor oscilloscope enables digitization of the signal image in parallel with microP controlled acquisition so that the speed of the oscilloscope is not affected.The SDS1104X-U series uses a new generation of SPO (super phosphor oscilloscope) technology that provides excellent signal fidelity and performance. It features an innovative digital trigger system with high sensitivity and low jitter and a waveform acquisition rate of up to 400,000 wfrm/s in sequence mode.Extensive display and trigger functions
The SDS1104X-U also features a 256 intensity level display function and a color temperature display mode not found on other models in this class. SIGLENT's latest oscilloscope model supports several powerful trigger modes, including serial bus triggering. Serial decoding for IIC, SPI, UART, CAN and LIN bus types is included as standard.
Powerful functions
The X-U models also include history waveform recording and sequential triggering, which enable advanced waveform recording and analysis. Another powerful addition is the new 128k point FFT math function, which gives the SDS1000X-U very high frequency resolution when observing signal spectra. The new digital design includes a hardware co-processor that delivers measurements quickly and accurately without slowing down the acquisition and front panel response. The SDS1000X-U also supports search and navigation functions. The feature set and performance of SIGLENT's new SDS1000X-U are unparalleled in this price range.Product highlights
USB WIFI Adapter
(Optional for 4 channel models)
WiFi control can provide a convenient and secure method for configuring and collecting data. This new feature works with a Siglent approved WiFi adapter.
USB 25 MHz AWG Module
(Optional for 4 channel models)
The four channel models supports a 25 MHz function or arbitrary signal generator connected via USB. Functions include sine, square, ramp, pulse, noise, DC as well as 45 built-in waveforms, waveforms are available in Easywave. A Bode Plot function is available on all 4 channel models.
Mixed signal option
(Optional for 4 channel models)
All four channel models of the SDS1000X-U series support the optional SLA1016 logic analyzer. Please note that in addition to the hardware, the activation license for the 16 digital channels is required.
Comprehensive connectivity options
The SDS1000X-U offers extensive connectivity options and supports USB host, USB device (USB-TMC), LAN (VXI-11), Pass/Fail and Trigger Out. All four-channel models also have the option of browser-based control via a web server.
Recording length of 14 Mpts
With hardware-based zoom technologies and a recording length of up to 14 Mpts, users can use a higher sampling rate to capture more signal and then quickly zoom in to focus on the area of interest.
Signal acquisition rate up to 400,000 wfm/s
With a signal acquisition rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture low probability events.
256-level intensity rating
More frequently occurring events are brighter (intensity gradation) than less frequently occurring events. This allows you to quickly identify interfering signals.
Color temperature grading
The event frequency is represented by different colors (temperature gradation). Frequent events have a warmer color. This helps to easily identify rare events.
Decoding function for serial bus
A serial bus decoding function is included as standard. The SDS1000X-U displays the decoding via the event list. Bus protocol information can be quickly and intuitively displayed in tabular form.
Progress waveforms & segmented acquisition
Play back the most recently triggered events using the history function. Segmented memory capture stores the waveform in multiple (up to 80,000) memory segments, each segment stores triggered waveforms and time stamps each frame.
Gate and zoom measurement
Gate and zoom measurement allows the user to specify any interval for waveform data analysis and statistics. This helps to avoid measurement errors that can be caused by invalid or irrelevant data and greatly improves the validity and flexibility of the measurements.
1 Mtps FFT function
The new mathematical coprocessor enables FFT analysis of incoming signals with up to 1 million samples per waveform. This provides high frequency resolution with a fast frame rate. The FFT function also supports a variety of windowing functions, allowing it to be adapted to different spectral measurement requirements.
Pass/Fail function on hardware basis
The pass/fail function performs up to 40,000 pass/fail decisions per second. Easy generation of user-defined test templates provides trace-mask comparison, making it suitable for long-term signal monitoring or automated production line testing.
Customizable default key
The current parameters of the oscilloscope can be preset to Default Key via the Save menu.
Measurements of up to 14 million sampling points
At any time base, the SDS1000X-U can measure with all 14 million sampling points. This ensures measurement accuracy, while the mathematical coprocessor reduces measurement time and increases ease of use.
Search and Navigate
(4 channel models only)
The SDS1000X-U can search for events specified by the user in a frame, and can also navigate by time (delay position) and recorded frames.
Technical Data
| Device specification |  SDS1104X-U |  SDS1104X-E |
|---|---|---|
| Channels | 4 | 4 |
| Bandwidth | 100 MHz | 100 MHz |
| Sampling rate | 1 GSa/s (1 Channel) 500 MSa/s (2 Channels) 250 MSa/s (4 Channels) | 1 GSa/s (1 Channel) 500 MSa/s (2 Channels) 250 MSa/s (4 Channels) |
| Memory depth | 14 MPts/CH (1 Channel) 7 MPts/CH (2 Channels) 3,5 MPts/CH (4 Channels) | 14 MPts/CH (1/2 Channels) 7 MPts/CH (4 Channels) |
| Signal acquisition rate | 100 000 wfm/s (Normal Mode) 400 000 wfm/s (Sequence Mode) | 100 000 wfm/s (Normal Mode) 400 000 wfm/s (Sequence Mode) |
| Vertical resolution | 8-bit up to 11-bit in ERES mode | 8-bit up to 11-bit in ERES mode |
| Serial Trigger & Decoder | I2C, SPI, UART, CAN, LIN (Standard) | I2C, SPI, UART, CAN, LIN (Standard) |
| Bode Plot | X | ✔ |
| Web Browser Remote Control | X | ✔ |
| Gerätespezifikation | SDS1104X-U |  SDS1104X-E |
|---|---|---|
| Kanäle | 4 | 4 |
| Bandbreite | 100 MHz | 100 MHz |
| Abtastrate | 1 GSa/s (1 Kanal) 500 MSa/s (2 Kanäle) 250 MSa/s (4 Kanäle) | 1 GSa/s (1 Kanal) 500 MSa/s (2 Kanäle) 250 MSa/s (4 Kanäle) |
| Speichertiefe | 14 MPts/CH (1 Kanal) 7 MPts/CH (2 Kanäle) 3,5 MPts/CH (4 Kanäle) | 14 MPts/CH (1/2 Kanäle) 7 MPts/CH (4 Kanäle) |
| Signalerfassungsrate | 100 000 wfm/s (Normal Mode) 400 000 wfm/s (Sequence Mode) | 100 000 wfm/s (Normal Mode) 400 000 wfm/s (Sequence Mode) |
| Vertikale Auflösung | 8-bit bis zu 11-bit im ERES-Modus | 8-bit bis zu 11-bit im ERES-Modus |
| Serielle Trigger & Decoder | I2C, SPI, UART, CAN, LIN (Standard) | I2C, SPI, UART, CAN, LIN (Standard) |
| Bode Plot | X | ✔ |
| Web Browser Remote Control | X | ✔ |
