Description

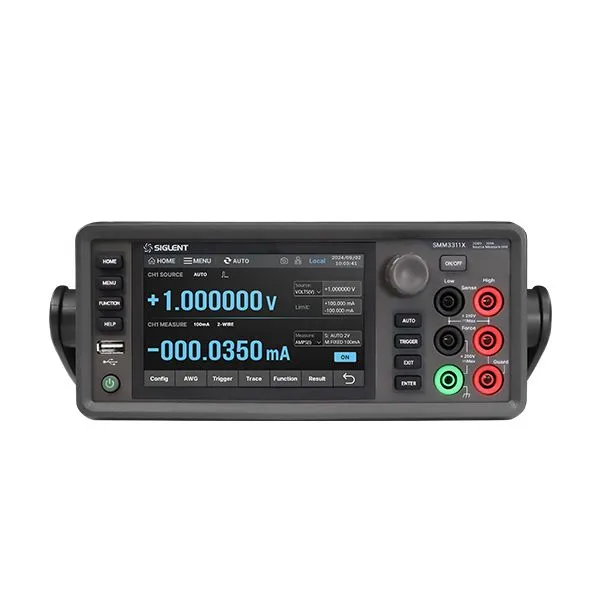

The Siglent SMM3311X source measurement unit is a single-channel precision device for source and measurement tasks in research and production. It offers 6½ digits (2,100,000 counts), a minimum programming and measurement resolution of 10 fA/100 nV and a maximum sampling rate of 100,000 points/s. The output covers ±210 V and up to 3.03 A DC, pulse operation up to ±10.5 A at 31.8 W. A 5-inch TFT touch display visualises measured values and curves directly on the device; SCPI, USB and LAN interfaces allow simple automation and integration into test benches.
Features
- 6½ digit display (2,100,000 counts)
- Minimum resolution: 10 fA / 100 nV
- Max. Output: ±210 V, 3.03 A DC; pulse ±10.5 A
- Max. output power Output power: 31.8 W
- Setting/measurement accuracy: V 0.015% + 225 µV; I 0.1% + 100 pA
- Sampling rate: up to 100,000 points/s
- 5-inch TFT touch display with graphic and numeric display
- Supports DC, pulse, scan and list output
- SCPI control as well as USB and LAN interfaces
- Minimum pulse width: 50 µs
The Siglent SMM3311X is a high-precision single-channel SMU for demanding characterisation and testing tasks. With 6½ digits (2,100,000 counts) and a programmable resolution of 10 fA/100 nV, the device combines fine measurement resolution with high dynamics. The output parameters range up to ±210 V and 3.03 A DC; in pulse mode, up to ±10.5 A is possible with a minimum pulse width of 50 µs. Typical areas of application are semiconductor characterisation, materials research, nanomaterial tests and power semiconductor transients. Setting and measuring accuracies are typically 0.015% + 225 µV for voltage and 0.1% + 100 pA for current. The sampling rate of 100,000 points/s and the support of DC, pulse, scan and list modes enable fast and reproducible measurement sequences. Local operation via 5-inch TFT touch display facilitates ad-hoc analyses; remote control via SCPI, USB and LAN supports test automation and data logging. Scan and list modes with automatic data storage and graphical evaluation simplify long-term measurements and characterisation routines.
Technical Data
| Product number |  SSM3311X |
| Series | SMM3000X |
| Channels | 1 |
| Display | 6½ digits (2,100,000 counts) |
| Minimum resolution | 10 fA / 100 nV |
| Max. Output | ±210 V / 3.03 A DC; pulse ±10.5 A |
| Max. Output power | 31,8 W |
| Sampling rate | 100.000 points/s |
| Display | 5-inch TFT touch display |
| Setting/measurement accuracy | V 0.015% + 225 µV; I 0.1% + 100 pA |
