DC bias current source master, current: 0-50 A (max. 400 A). Frequency response: 1 kHz-2 MHz. Independent or LCR-controlled operation.
Volume discounts on request!
€10,000.00 Net
€11,900.00 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1-2 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2 year guarantee
Description

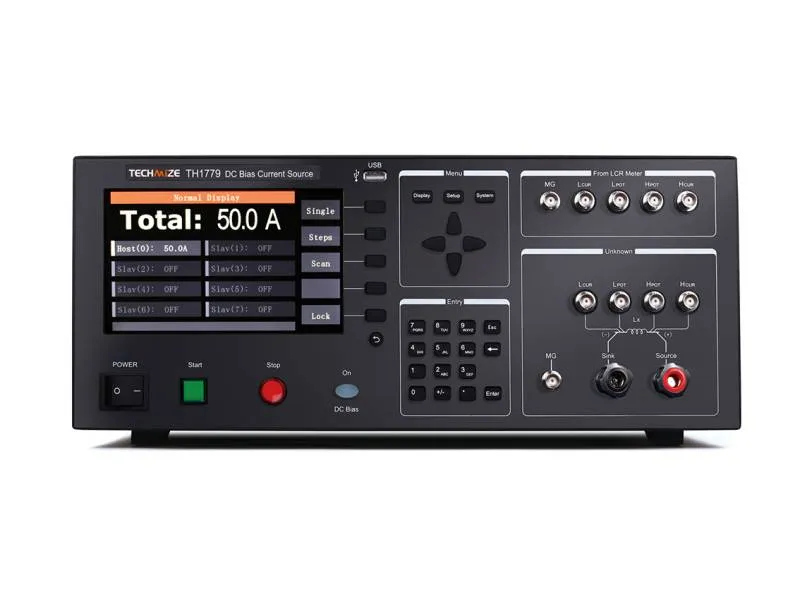

The Tonghui TH1779 DC Bias Current Source is a flexible constant current source that provides currents from 0-50 A and supports up to 400 A in master/slave mode via eight units connected in parallel. With a wide frequency range from 1 Hz to 2 MHz, precise current stepping and an intuitive graphical user interface in German and English, the TH1779 is ideal for demanding applications in research, development and quality assurance. The robust unit in a 19″ housing offers SCPI remote control capability, multiple control and monitoring modes and seamless integration into existing test systems.Features
- Single constant current output 0-50 A, master or slave mode
- Parallel connection of up to 8 units for a maximum of 400 A
- Master/slave control for modular expandability
- Fine-step current stepping with 0.1 A resolution
- Frequency response 1 Hz-2 MHz
- Two output modes: continuous current and step-by-step scanning
- Graphical user interface in German/English
- Two SCPI command modes and five control modes
- Direct control via TH2836/38/39/40/48 series possible
Applications
- DC characteristic analysis of inductors and reactors
- Saturation behaviour of ferrite and iron cores
- DC characterisation of other magnetic materials
Technical Data
| Parameters | Specification |
|---|---|
| Current range | 0,1-50 A |
| Current resolution | 0,1 A |
| Frequency range | 1 Hz-2 MHz |
| Current rise/fall time | 1-20 A/s, freely adjustable |
| Min. scan step | 0,01 A |
| Max. Output voltage | 16 V |
| Max. permissible DC resistance | Rmax=Vmax/I |
| Max. permissible inductance | Lmax=Vmax/(di/dt) |
| Start/stop control | Physical buttons, bus, foot switch |
| Continuous measurement duration | Up to 30 min at full load |
| Self-test & function | Fault self-test; slave circuit; real-time operation; SCPI |
| Interfaces | RS232, SlaveLink |
| Operating temperature | 0 °C to 55 °C |
| Air humidity | < 90 % RH |
| Mains connection | AC 220 V/110 V ± 10 %, 50/60 Hz ± 5 % |
| Power consumption | Standby ≤ 100 VA; full load 1.5 kVA |
| Dimensions (W×H×D) | 430 × 177 × 585 mm |
| Weight | 26.5 kg |
