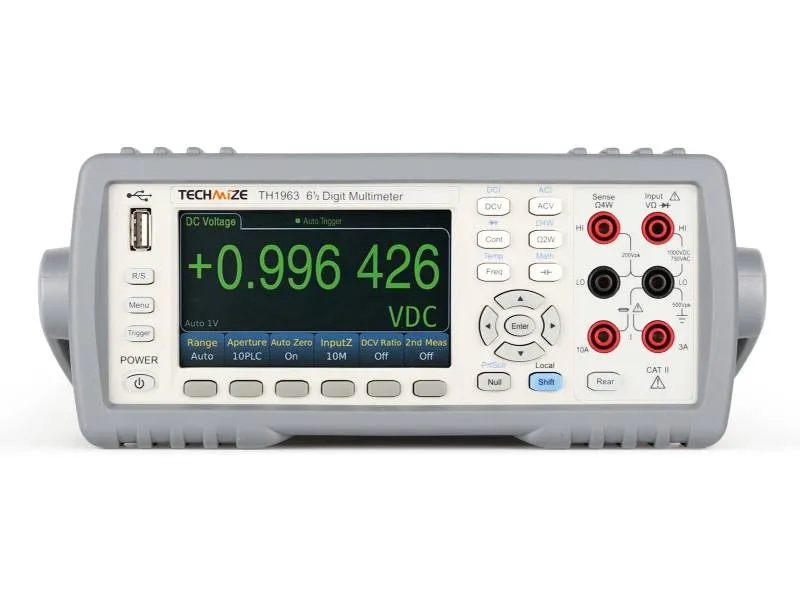

The TH1963 is a compact 6½-digit digital multimeter with which up to 1000 measurements per second are possible.
Volume discounts on request!
€1,069.00 Net
€1,272.11 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1-2 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2 year guarantee
Description
The TH1963 is a 6½-digit digital multimeter with 4.3″ colour LCD, up to 1000 measurements/s, true RMS measurement and extensive functions for voltage, current, resistance, capacitance, frequency, temperature and more. It is suitable for precise laboratory, development and production measurements. It offers a variety of interfaces such as RS232, USB, LAN and a trigger output.Features
- 6½-digit display (up to 1,199,999)
- 4.3″ colour LCD with Chinese/English menu navigation
- Measuring speed up to 1000 measurements/s
- True RMS AC measurement up to 750 V, DC voltage up to 1000 V, current up to 10 A
- Resistance measurement 0.01 mΩ-120 MΩ (2W/4W)
- Capacitance measurement (1 nF-10 mF), frequency measurement (2 Hz-1 MHz)
- Diode, continuity and temperature measurement (RTD/thermistor)
- Histogram, bar and trend diagram display
- Mathematical functions: Zero setting, Min/Max/Average/StdDev, dB/dBm, mX+b, percentage calculation
- Comparator with HI/LO limits and acoustic signal
- Internal storage of up to 10,000 measured values
- Interfaces: USB device, USB host, RS-232C, LAN; optional GPIB/handler
- SCPI programming and remote control possible
Applications
- Automated test systems in production and maintenance
- Laboratory and development tests, teaching/laboratory tests
- Measurement tasks in research and quality assurance for electronics and components
- Field and service applications thanks to compact design and diverse interfaces
- Precision measurements for component tests (voltage, current, resistance, capacitance, frequency, temperature)
Technical Data
| Model |  TH1963 |
|---|---|
| Display | 4.3″ colour LCD, Ch/En menu navigation |
| Display resolution | 6½ digits (up to 1,199,999) |
| Measuring speed | Up to 1000 measurements/s |
| DC voltage | 0.1 µV-1000 V, high accuracy |
| True RMS AC voltage | 0.1 µV-750 V RMS, True RMS |
| DC current | 10 nA-10 A, high accuracy |
| AC current | 10 nA-10 A True RMS |
| Resistance | 0.01 mΩ-120 MΩ (2W/4W) |
| Capacitance | 1 nF-10 mF |
| Frequency | 2 Hz-1 MHz |
| Diode | Up to 5 V |
| Continuity | Test current 1 mA, threshold approx. 10 Ω |
| Temperature | RTD/thermistor, e.g. PT100 |
| Display modes | Direct, histogram, bar chart, trend chart |
| Memory | Internal up to 10,000 measured values |
| Interfaces | USB device, USB host, RS-232C, LAN; optional GPIB/handler |
| Power supply | 110 V/220 V ±10 %, ≤30 VA, 50/60 Hz |
| Environment | 0 °C-40 °C, ≤90 % RH |
| Dimensions (W×H×D) | 225×100×355 mm |
| Weight | ≈ 2.7 kg |
