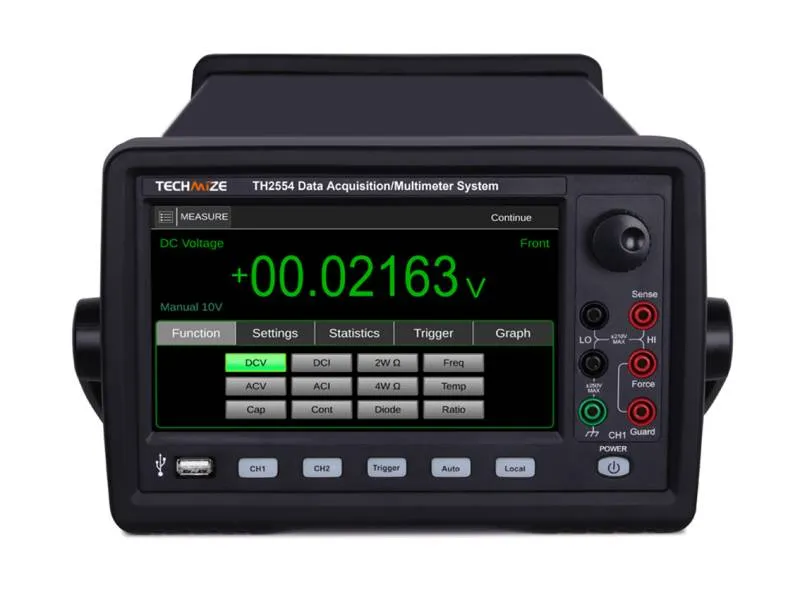

The TH2554 is a modular multi-channel DAQ with 5 slots for up to 160 channels and a 6½-digit DMM module.
Volume discounts on request!
€1,219.00 Net
€1,450.61 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2 year guarantee
Description
Unlike a conventional multimeter, the TH2554 is designed as a modular multi-channel data acquisition system with Linux OS and touchscreen that can simultaneously measure dozens to hundreds of channels, log data at high speed and integrate automated test sequences via SCPI/remote control. A normal multimeter, on the other hand, is designed for single point, manual measurements, offers fewer channels, less memory and limited automation options. This makes the TH2554 ideal when many measuring points in parallel, continuous logging and system connection are required, while a standard multimeter is sufficient for simple, sporadic tests.The TH2554 is a high-precision, highly stable multi-channel data logger with 7″ colour touchscreen, Linux OS and five module slots for DMM and multiplex modules, suitable for extensive measurement and logging tasks with automation requirements.
Features
- 7-inch capacitive touchscreen, resolution 800×480
- Linux operating system for stable platform
- Five module slots, standard with 6½-digit multimeter module (DMM)
- Stand-alone support for up to 160 channels (very low cost per channel)
- Measurement functions of the DMM module: DCV, ACV (True RMS), DCI, ACI, 2WR, 4WR, period duration measurement, frequency, temperature (thermocouple, thermistor, RTD)
- High measurement accuracy: 0.0035 % for DC voltage, 0.010 % base resistance
- Scanning speed: basic module ~90 channels/s, fast module ~800 channels/s
- Temperature detection: thermocouples, thermistors, RTDs
- Data logging: Storage of up to 100,000 measured values with time stamp
- Standard SCPI command set, USB data can be saved directly
- Interfaces: USB device & host, RS-232C, LAN; optional IEEE-488/GPIB and handler interface
- Calibration front-panel or remote-capable, intuitive operation with rotary knob and touchscreen
Applications
- Industrial temperature and resistance tests: motors, transformers, magnetic cores, sintering furnaces, battery tests, charging stations, automotive tests, LED/lamp tests, chip temperature measurement
- Agriculture: temperature monitoring in vegetable/fruit greenhouses, cold stores
- Chemistry: process and equipment monitoring in reaction furnaces, production facilities
- Animal husbandry: monitoring in breeding/storage areas, refrigeration installations for food/seafood
- Medicine: temperature monitoring in wards, examination rooms, medicine storage facilities, sperm banks, emergency vehicles
Technical Data
| Model |  TH2554 |
|---|---|
| Display | 7″ capacitive touchscreen, 800×480 pixels |
| Operating system | Linux |
| Module slots | 5 slots (standard: 6½-digit multimeter module) |
| Channels | Up to 160 channels (stand-alone) |
| Measurement functions (DMM) | DCV 0.1 µV-300 V; ACV 0.1 µV-300 V true RMS; DCI 10 pA-3 A; ACI 1 nA-3 A; resistance 0.01 mΩ-120 MΩ (2/4-wire); frequency 2 Hz-1 MHz; temperature (T/C, thermistor, RTD); period duration |
| Measuring accuracy | DCV: 0.0035 %; Resistance: 0.010 % Basic value |
| Scanning speed | Basic: ~90 channels/s; Fast module: ~800 channels/s |
| Data logging | Up to 100,000 measured values with time stamp |
| Interfaces | USB device/host, RS-232C, LAN; optional GPIB/IEEE-488, handler interface |
| Control system | Standard SCPI command set, remote or front panel controllable |
| Calibration | Front panel or remote controllable; TCAL=23 °C, 1 year cycle |
| Power supply | AC 90 V-264 V, 50/60 Hz, <250 VA |
| Environment | 0 °C-40 °C, ≤90 % RH |
| Rack dimensions | Rack: 215×132×490 mm; Housing: 235×154×530 mm |
| Weight | ≈ 7.8 kg |
