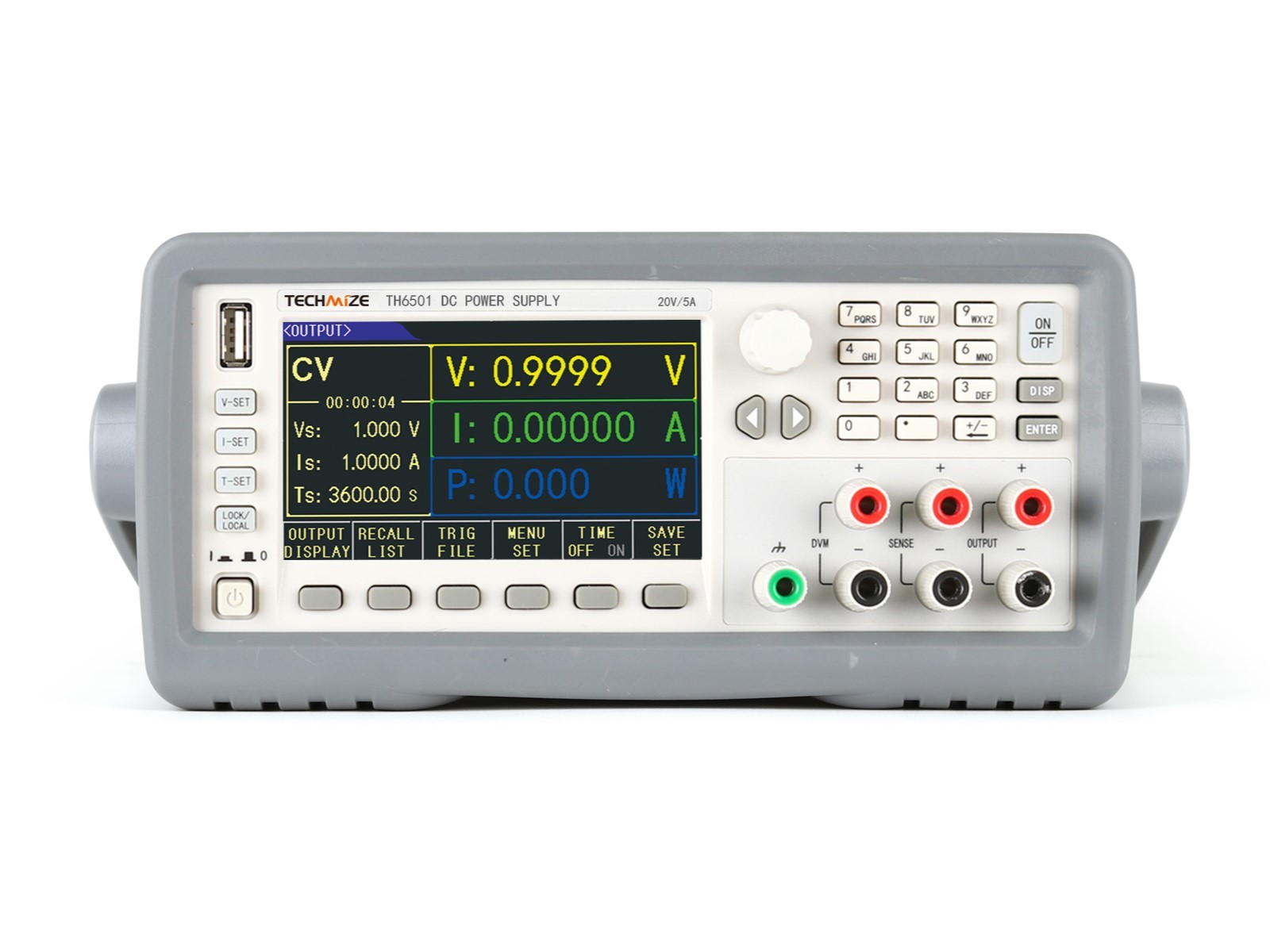

Linear DC power supply 0-20 V/0-5 A (100 W) with 4.3″ TFT, high precision and compensation, ideal for low voltages.
Volume discounts on request!
€719.00 Net
€855.61 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1-3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2 year guarantee
Description
The TH6500 series is a programmable linear DC power supply with very fast voltage slew rate, high accuracy/resolution and compensation function to minimise line losses; it offers voltmeter and ohmmeter function, panel programming, OVP/OCP protection and RS232/USB/GPIB interfaces for automation and remote control.Features
- 4.3″ 24-bit colour TFT LCD (480×272) with numeric keypad operation
- Very low ripple & noise, intelligent fan control
- Programmable output values (voltage/current) via touch/button, timing (0.01-9999.99 s) and panel recall
- Integrated 5½-digit milliohmmeter and DVM function with sampling terminals
- Compensation function for line losses (four-wire measurement)
- Hardware OVP and OCP, alarmable events
- USB host for saving screenshots/firmware upgrade, RS232/USB device/GPIB (option) for data communication and
- Data communication and SCPI/MODBUS protocols
- Software monitoring and remote control via PC
Applications
- Research & development, design verification and R&D testing
- Production line routine testing, maintenance and automated device integration
- Solar PV simulation tests and new energy vehicle simulation
- Teaching labs and educational purposes
Technical Data
| Model | Output voltage range | Output current range | Max. Power |
|---|---|---|---|
| TH6501 | 0-20 V | 0-5 A | 100 W |
| TH6502 | 0-32 V | 0-3 A | 96 W |
| TH6503 | 0-72 V | 0-1,5 A | 108 W |
| TH6511 | 0-20 V | 0-10 A | 200 W |
| TH6512 | 0-32 V | 0-6 A | 192 W |
| TH6513 | 0-72 V | 0-3 A | 216 W |
