TH8602-2 Cable/harness tester

256-pin version with full equipment like TH8602, supports complex cable harnesses and multi-channel tests.

Offer

Description

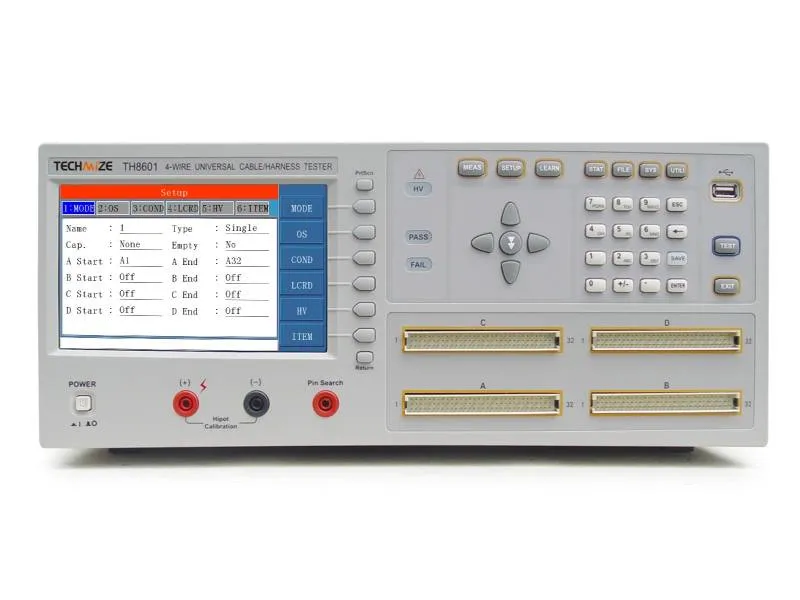

The TH8601/TH8602/TH8603 series are modular expandable cable and wire harness testers with 7″ TFT LCD user interface, comprehensive continuity, short circuit, insulation and component tests as well as high-voltage functions and automation interfaces. Different models offer different contact position capacities and additional functions for flexible test benches in manufacturing, automotive and electronics.

Features

7″ TFT-LCD TrueColor (800×480) with Chinese/English GUI and touch/keyboard operation
Internal/external four-wire measurement for precise continuity and resistance tests
Continuity, short circuit and instant short circuit/interruption test with automatic point search
AC/DC high-voltage tests with arc detection and patented high/low voltage separation for insulation >100 GΩ
Component tests (resistance, capacitance, diode, polarity, voltage drop) using four-wire technology and parallel voltage/current scanning
Type C and I²C/EMARK chip tests (depending on model) for testing modern data cables
Programmable signal sources: AC (50 Hz-300 kHz), DC (0-5 V), DC constant current (1-20 mA), HV source AC/DC (up to 750-1500 V)
High-voltage tests with four modes: "Pairwise", "Dichotomy", "Automatic" and "Earthing test"
Automation interfaces: RS232, USB host/device, LAN, GPIB/RS485 (optional), HANDLER with programmable outputs
File handling & firmware upgrade via USB stick
Self-test and online diagnostics for fast maintenance
High test speed: e.g. 10 ms for 128 points (TH8601), 4 ms for TH8602 Instant Break, 20 ms for 512 points TH8603

Applications

Automotive electronics: ECU and battery cables, cable harnesses, sensor/display cables, audio/video connections
Electronics manufacturing: Ribbon, network, USB/HDMI/VGA, IDE/SATA cables, connectors, multi-core sockets
Communication/IT: network cables, mobile phone/laptop cables, Type-C/USB data cables
Component testing: Passive components (capacitor, inductance, resistor, diode, polarity, voltage drop)
Safety and insulation tests: AC/DC insulation resistance and hipot tests for cables and materials up to >100 GΩ
Automated test benches: pass/fail evaluation, sequence tests, handler integration, PC control via SCPI/Modbus

Technical Data

Model comparison	Test pin positions	Wire Type	Conductance/Transient Conduct	Open/Short Circuit	Diode Test	Capacitance Test	DCR	AC Withstand Voltage	AC Withstand Current	DC Withstand Voltage	DC Withstand Current	Insulation Voltage	Insulation Resistance
TH8601	128 Pin	Four-Wire Two-Wire	10 mΩ-950 Ω	1 kΩ-50 kΩ	0-10 V	10 pF-1 mF	10 mΩ-1 MΩ	1000 V	5 mA	1500 V	5 mA	1500 V	1 GΩ
TH8601A	64 pin	Four-Wire Two-Wire	10 mΩ-950 Ω	1 kΩ-50 kΩ	0-10 V	10 pF-1 mF	10 mΩ-1 MΩ	1000 V	5 mA	1500 V	5 mA	1500 V	1 GΩ
TH8602-1	64 pin	Four-Wire Two-Wire	1 mΩ-50 Ω	1 kΩ-50 kΩ	0-10 V	10 pF-1 mF	10 mΩ-1 MΩ	1000 V	5 mA	1500 V	5 mA	1500 V	1 GΩ
TH8602-2	128 pin	Four-Wire Two-Wire	1 mΩ-50 Ω	1 kΩ-50 kΩ	0-10 V	10 pF-1 mF	10 mΩ-1 MΩ	1000 V	5 mA	1500 V	5 mA	1500 V	1 GΩ
TH8602-3	192 Pin	Four-Wire Two-Wire	1 mΩ-50 Ω	1 kΩ-50 kΩ	0-10 V	10 pF-1 mF	10 mΩ-1 MΩ	1000 V	5 mA	1500 V	5 mA	1500 V	1 GΩ
TH8602-4	256 pin	Four-Wire Two-Wire	1 mΩ-50 Ω	1 kΩ-50 kΩ	0-10 V	10 pF-1 mF	10 mΩ-1 MΩ	1000 V	5 mA	1500 V	5 mA	1500 V	1 GΩ
TH8602-B	64 pin	Four-Wire Two-Wire	1 mΩ-50 Ω	1 kΩ-50 kΩ	0-10 V	10 pF-1 mF	10 mΩ-1 MΩ	1000 V	5 mA	1500 V	5 mA	1500 V	1 GΩ
TH8602-C	192 pin	Four-Wire Two-Wire	1 mΩ-50 Ω	1 kΩ-50 kΩ	0-10 V	10 pF-1 mF	10 mΩ-1 MΩ	1000 V	5 mA	1500 V	5 mA	1500 V	1 GΩ
TH8603-4	512/256 Pin	Two-Wire/Four-Wire	100 mΩ-950 Ω	1 kΩ-50 kΩ	0-10 V	1 nF-1 mF	10 mΩ-1 MΩ	750 V	5 mA	1000 V	1 mA	1000 V	1 GΩ
