€55.00*
In Stock, Delivery time: 1 - 3 days
Description
10-pin gripper clip split cables with the individual strands make it easy to connect the Aardvark I2C/SPI host adapter, Beagle I2C/SPI/MDIO protocol analyzer or the Cheetah SPI host adapter to the target object.
Properties

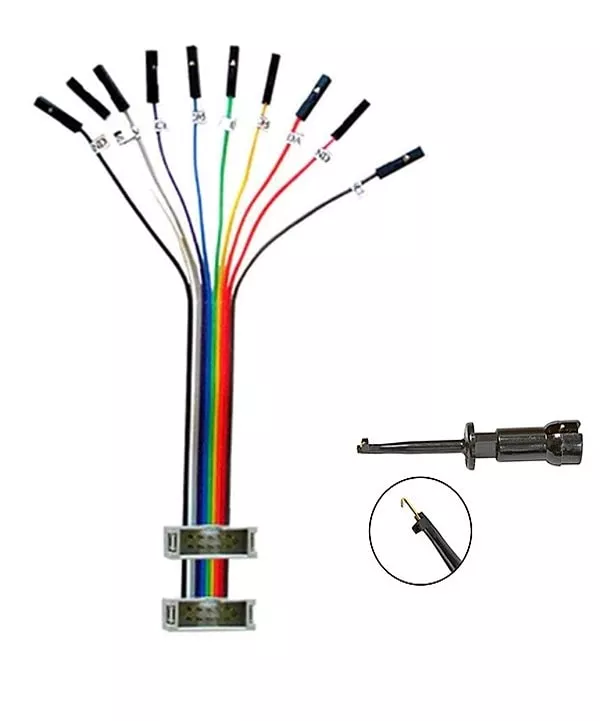

The 10-pin grabber clip split cable features a 10-pin box header that attaches to the ribbon cable. Each individual wire is a different color and is labeled with the pin name for easy identification.
Each pen has a gripper clip on the end with the following dimensions. The entire clip is nominally 44mm long. The cap body width is 2.54mm wide and approximately 21.5mm long. The hook of the gripper clip is 0.51mm wide and has a maximum opening of 3.18mm.
The connector is a standard IDC key connector with a pitch of 2.54mm (5 x 2.0.100"). Each individual cable is terminated with a single pole crimp connector with the same pitch of 2.54mm (0.100") closed. The cable is only 5 inches long to minimize signal degradation.
Universal use
The 10-pin grabber clip split cable is an incredibly useful tool that eliminates the need to create or purchase adapter cards for your 10-pin ribbon cable. Although marked with the Aardvark™ I2C/SPI host adapter and Beagle™ I2C/SPI protocol analyzer specific pinout, this split cable is universally adaptable to a variety of applications.
This split cable connects to any standard 10-pin 2.54mm (.100") female IDC connector.
