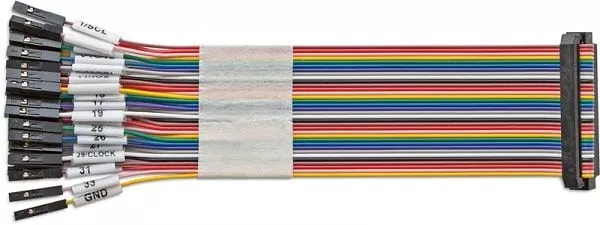

This cable attaches to the ribbon cable end directly on the Promira Serial Platform and allows you to connect any of the 34 Promira platform pins to your target.
€99.00*
Content: 1
In Stock, Delivery time: 1 - 3 days
Further information
Product number: TP510410
Manufacturer: Total Phase
Description
The 34-pin split cable is the ideal solution if individual pins of the Promira Platform are to be connected to your project.
If the pin crimp connectors are unsuitable for your application, grab clips are available on the 34-Pin Grapper Cable (TP510510).
If no 34-pin header is integrated as standard on your embedded project, this cable is required for the additional power supply. (In addition to the 100mA already available via pins 4 and 6, pins 22 and 24 offer an additional 100mA). If you use the extended functionalities such as eSPI, Dual or Quad I / O SPI of the Promira Serial Platform, the 34-pin split cable is also required.
Technical Data
| Pin Spezifikation | I2C/SPI | eSPI | MDIO |
|---|---|---|---|
| #1 | SCL/SS1/GPIO-0 | Alert#-0 | |
| #2 | GND | GND | GND |
| #3 | SDA/SS2/GPIO-1 | CS2/Alert#-1 | |
| #4 | VTGT1 | VTGT1 | VTGT1 |
| #5 | MISO/GPIO-2 | IO1 | MDIO |
| #6 | VTGT2 | VTGT2 | VTGT2 |
| #7 | SCK/GPIO-3 | SC1 | MDC |
| #8 | MOSI/GPIO-4 | IO0 | |
| #9 | SS0/GPIO-5 | CS0 | |
| #10 | GND | GND | GND |
| #11 | IO2/GPIO-6 | IO2 | |
| #12 | GND | GND | GND |
| #13 | IO3/GPIO-7 | IO3 | |
| #14 | SS4/GPIO-8 | CS1 | |
| #15 | SS3/GPIO-9 | eSPI Reset#-0 | |
| #16 | GND | GND | GND |
| #17 | TBD | TBD | |
| #18 | GND | GND | GND |
| #19 | TBD | TBD | |
| #20 | TBD | TBD | |
| #21 | TBD | TBD | |
| #22 | VTGT3/VLVL1 | VTGT3/VLVL1 | VTGT3/VLVL1 |
| #23 | TBD | TBD | |
| #24 | VTGT4/VLVL2 | VTGT4/VLVL2 | VTGT4/VLVL2 |
| #25 | TBD | TBD | |
| #26 | TBD | TBD | |
| #27 | TBD | TBD | |
| #28 | GND | GND | GND |
| #29 | TBD | TBD | |
| #30 | GND | GND | GND |
| #31 | TBD | TBD | |
| #32 | TBD | TBD | |
| #33 | TBD | TBD | |
| #34 | GND | GND | GND |
