Total Phase I2C/SPI Activity Board

The I2C/SPI Activity Board enables experienced developers to carry out a plausibility check.


In Stock, Delivery time: 1-3 days

Further information
Product number: TP240310
Manufacturer: Total Phase


The I2C/SPI Activity Board enables experienced developers to carry out a plausibility check. Testing a system against slave devices can help differentiate between hardware and software errors. This board is also useful for laying a foundation for software usage.

Key Features

  • Has I2C and SPI slave devices for testing and debugging
  • I2C port expander with configurable I2C address and LEDs.
  • I2C EEPROM with configurable I2C address.
  • SPI EEPROM with jumpered slave select.
  • Allows easy connection between two Aardvark I2C / SPI host adapters.
  • Pass-through pins for connecting an external bus monitor or protocol analyzer.

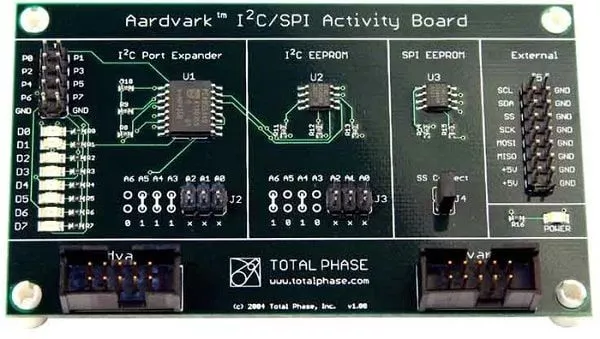

 I2C/SPI Activity Board


  • I2C Port Expander PCA9554AD 8-bit I2C and SMBus I/O port with interrupt (NXP Semiconductors)
  • I2C EEPROM AT24C02 256 bytes / 2 kilobits (8 byte pages) 2-wire bus serial EEPROM (Atmel)
  • SPI EEPROM AT25080A 1 Kilobyte / 8 Kilobit (32 byte pages) SPI Bus serial EEPROM, High Speed, supports SPI Mode 0 and 3 (Atmel)
Beagle I2C/SPI Protokoll Analyzer - Total Phase
Beagle I2C/SPI Protocol Analyzer
The versatile Beagle I2C/SPI Protocol Analyzer is the ideal tool for the embedded engineer who is developing an I2C, SPI, or MDIO based product.

I2C Entwicklungskit
I2C Development Kit
Total Phase I2C Development Kit consists of an Aaardvark, a beagle, 2 x 10-pin split cables, 1 x I2C / SPI activity board and 2 two 1.83 cm USB A to B cables.

SPI Entwicklungskit
SPI Development Kit
The Total Phase SPI development kit is a bundle consisting of Cheetah, Beagle SPI & accessories specially adapted for SPI development.

Flash SOIC-8 Socket Board 10/34
Flash SOIC-8 Socket Board - 10/34
The Flash SOIC-816 Socket Board - 10/34 offers the embedded developer a simple and cost-effective way to program SPI-based serial flash devices.

34-Pin: 10-Pin Header Kabel
34-Pin: 10-Pin Header Cable
The 34-pin connector has a "locking friction ramp" while at the other end is a 10-pin, 5x2, 0.010 connector.
