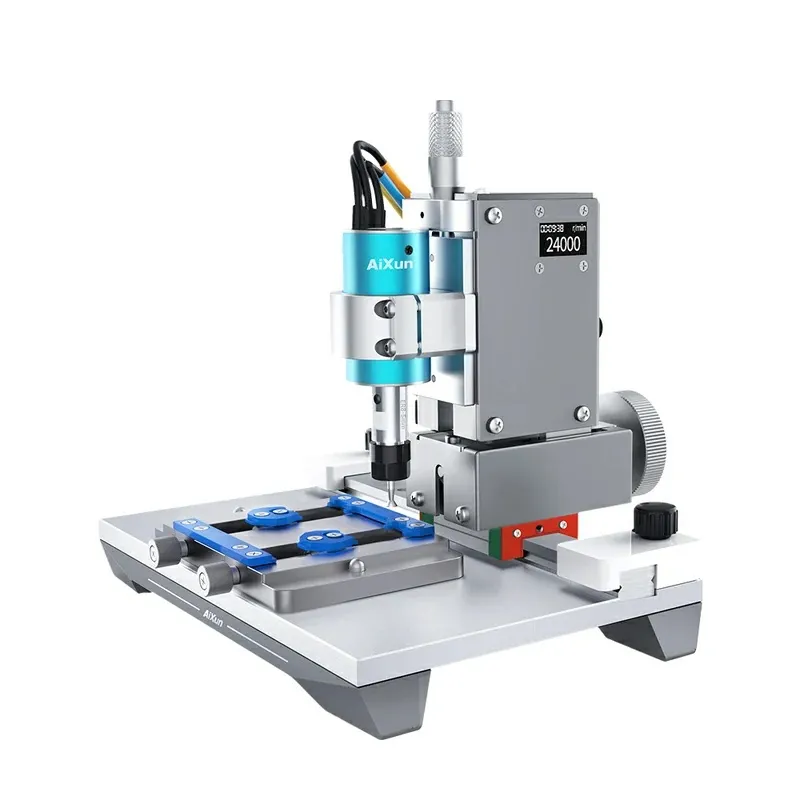

Aixun 2nd Gen Chip Grinding Machine designed for touch ICs and mainboard chips.
Volume discounts on request!
€240.00 Net
€285.60 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1-3 days
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Customize your product!
Click on a category below to view available options.
Description
The 2nd Gen Chip Grinding Machine is specially designed for the precise grinding of touch ICs and mainboard chips. With its compact A4 format and a maximum idle speed of 24,000 rpm, it offers high load capacity and efficiency. A 0.8 inch OLED display allows the speed to be checked at any time. The integrated, high-speed brushless internal rotor motor in aerospace quality ensures powerful and precise sanding. Thanks to the linear rail and limiting blocks on both sides, the sanding depth, width and length can be set precisely. The rotatable multi-angle holder makes it easy to process differently shaped mainboards, touch ICs, NAND and other chips.
Features
- Fast and efficient thanks to high rotation speed
- 0.8 inch OLED display, clearly shows the status of the rotation speed
- Customised ER8 CNC collet and emery grinding heads in 2.5/4.0 mm
- Customised high-performance aerospace-grade internal rotor motor, brushless and high-speed, with adjustable speed
- Maximum idle speed of 24000 revolutions per minute, higher load intensity and work efficiency
- Remote-controlled online software upgrade to utilise the latest functions at any time
- Linear guide and double-sided end stop, arbitrary adjustment of the positioning point
- Commonly used in touch IC, motherboard chip grinding
Technical Data
| Machine specification |  2nd Gen Chip Grinding Machine |
|---|---|
| Maximum idle speed | 24.000 revolutions per minute |
| Input voltage | 12 V direct current |
| Workbench size | 197*93mm |
| Application | Grinding of touch ICs and motherboard chips |
| Dimensions | 204*162*179mm |
