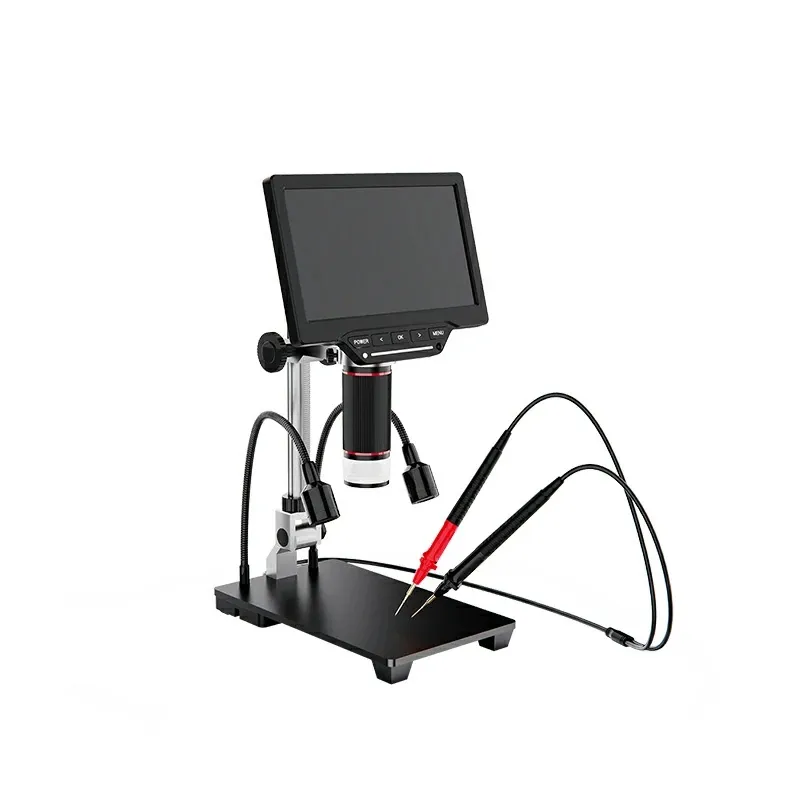

Aixun DM21 7-inch electric digital microscope with multimeter
Volume discounts on request!
€215.00 Net
€255.85 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1-3 days
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Further information
Product configuration
Customize your product!
Click on a category below to view available options.
Description
The DM21 is a combination of microscope and multimeter. This device enables the measurement of diodes, DC voltage, capacitance, on/off values and resistances without a computer connection. It has a large 7-inch HD screen, mini-HDMI video output, infrared remote control, 10-step exposure control, AE lock, exposure compensation, stepless fill light adjustment by touch, adjustable camera lens height, precise function measurement, 15 value memories and two probes with drive-by-wire button operation. Press and hold the button on the probe to switch between four measuring modes and click once to save the measured value.
Features
- 2-in-1 - electronic microscope and digital multimeter
- Suitable for measuring resistance, DC voltage, diode and capacitance
- No connection to a computer required
- 7 inch LED display
- Mini-HDMI video output, supports expansion of external display devices
- Supports infrared remote control for control without directly pressing a button
- Ten-step adjustable exposure control, AE lock, exposure compensation, touchable stepless fill light adjustment
- Adjustable height of the camera lens, the mount can be used at different angles
- Precise function metering, 15x value memory, two probes with push-button drive-by-wire operation
- Has a built-in 2000mAh rechargeable battery
Technical Data
| Device specification |  DM21 |
|---|---|
| Max. Resistance | 400,0 Ω ± (1,0 % + 2) |
| Max. Capacitance | 4,000 nF to 10,00 mF |
| Max. DC voltage | 40,00 V ± (0,5 % ＋ 5) |
| Magnification | 1200x |
| Screen resolution | 1024 × 600 |
| Image resolution | 2688 x 1512, 5376 x 3024 |
