€240.00 Net
€285.60 incl. VAT
In Stock, Delivery time: 1-3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Description

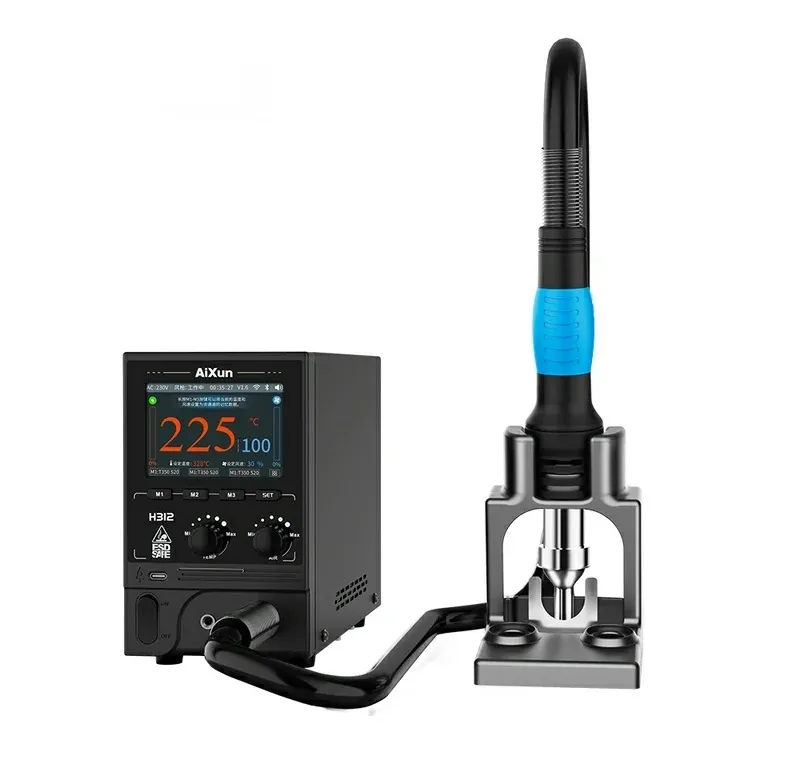

The AiXun H312 intelligent hot air rework station combines internet technology with powerful 1400 W heating power for higher wind speed and efficient soldering. The one-button start force mode ensures reliable operation even in magnetic environments.
It supports segment and curve desoldering with customisable technical desoldering parameters that can be stored in a cloud database. The 3.5-inch IPS HD screen facilitates temperature monitoring.

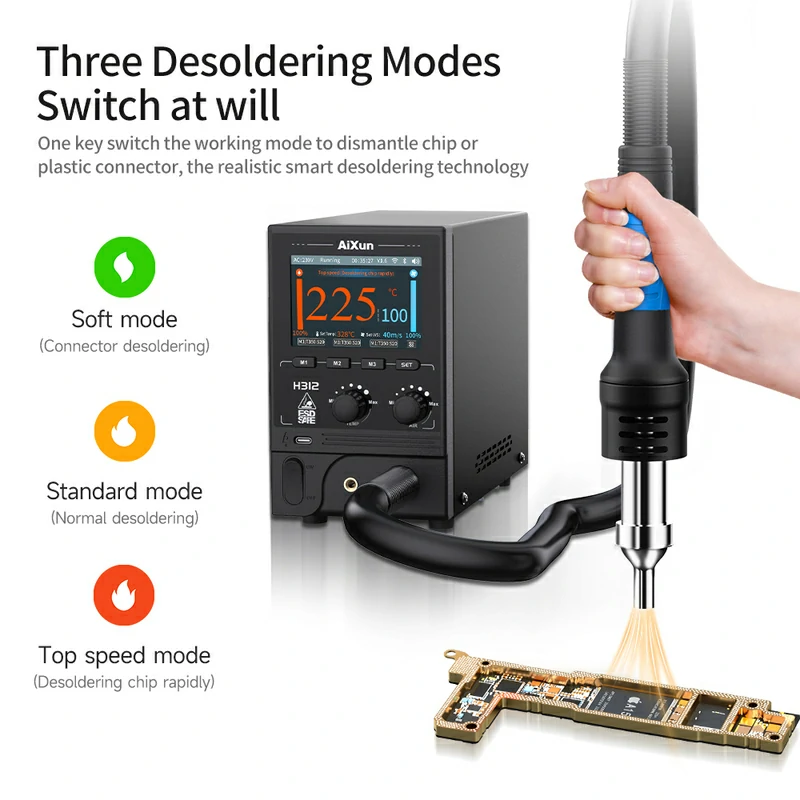

Highlights include WiFi OTA updates, Bluetooth connectivity and a quiet brushless turbo fan for stronger wind power. Three working modes (standard, soft for plug desoldering, maximum speed for fast chip desoldering) enable flexible working, quickly switchable via shortcut buttons - ideal for beginners and professionals.
Features

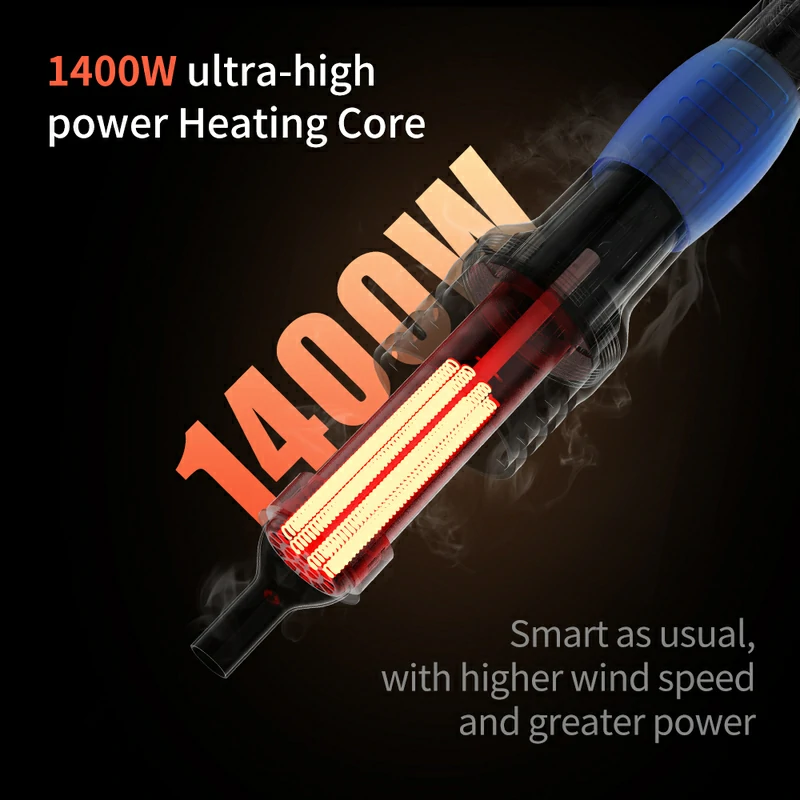

- 1400 W heating core for fast heating and maximum performance
- WiFi network OTA upgrade, connection via Bluetooth
- 3.5-inch IPS HD screen, integrated intelligent operating system
- One key switch to switch between the three desoldering modes, cold air mode and power work mode
- Dual combination of segment and curve desoldering
- Quiet brushless fan with strong but silent airflow, 1400 W power for extremely fast heat-up.

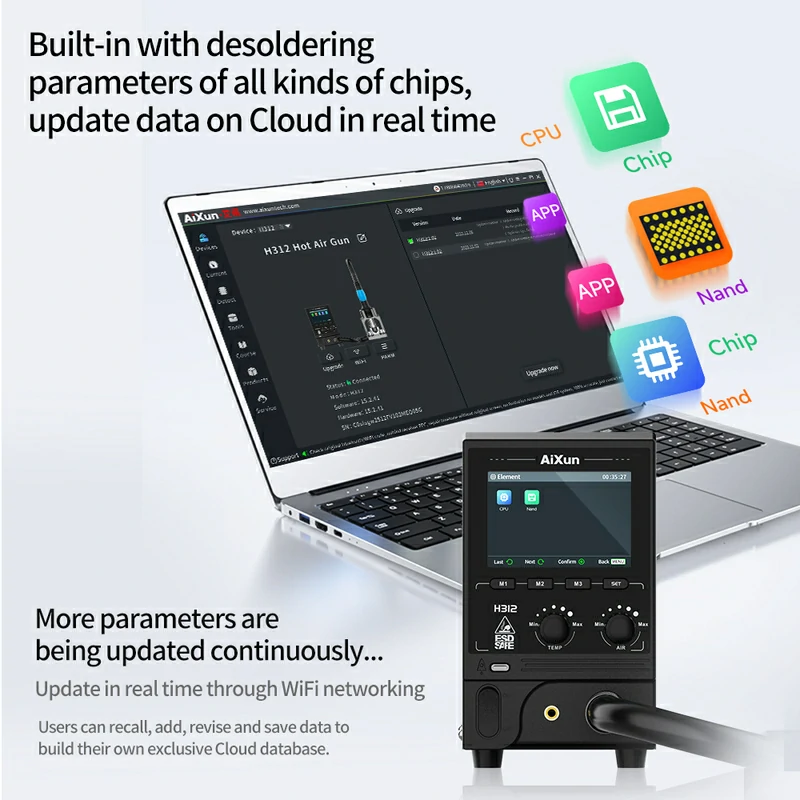

- Integrated desoldering parameters for all chip types and real-time cloud data update. Users can retrieve, edit and save data to create their own cloud database.
Technical Data
| Device specification |  H312 |
|---|---|
| Input voltage | 220V~50Hz |
| Maximum power | 1400W |
| Rated power | 1200W |
| Air flow | 10-50m/s |
| Temperature range | 100-500°C |
| Airflow gearbox | 1%-100% |
| Display | 3.5-inch IPS |
| Communication | Type-C/Bluetooth/WIFI |
| Fan type | Even wind/spiral wind |
| Dimensions | 220*100*170mm |
Documentation
Accessories
Additional 45 degree nozzles
PCbite brackets
Produkt abgekündigt
