Description

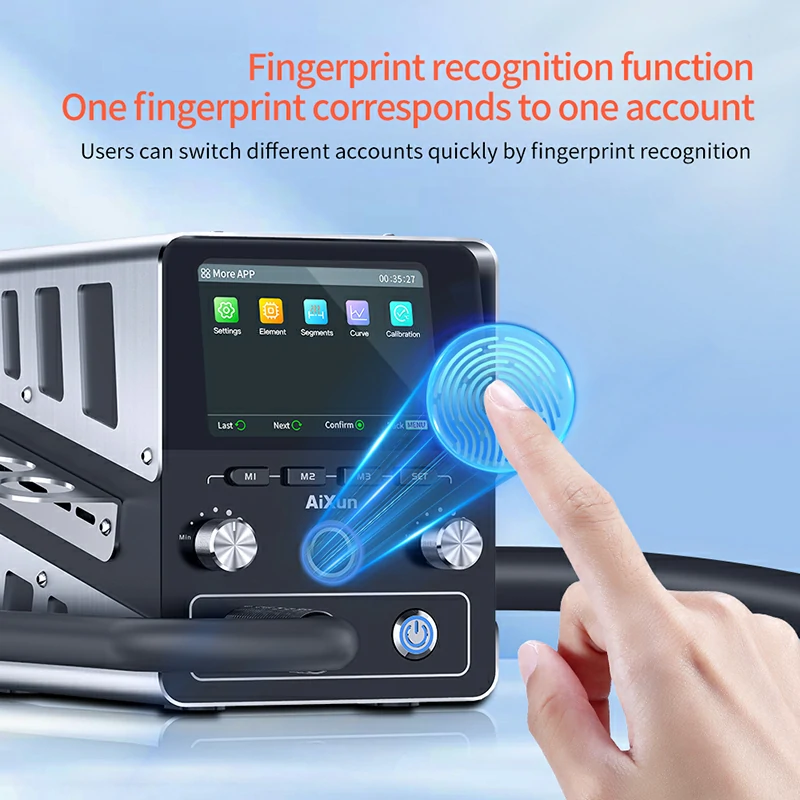

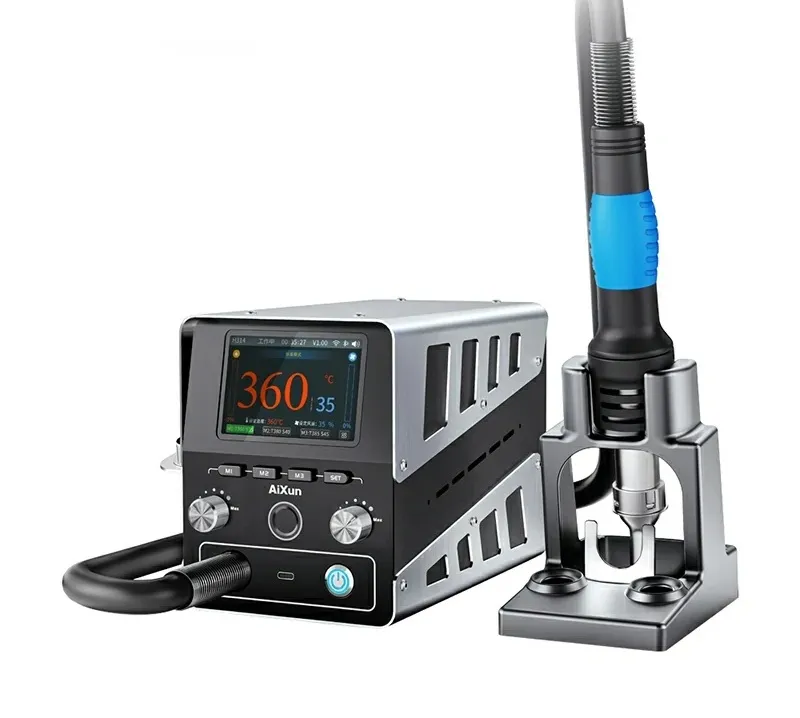

The H314 hot air station brings modern smart functions, as known from smartphones or smart home devices, to the world of soldering technology. With WiFi, Bluetooth and OTA upgrades, it offers common wireless connectivity and also supports AI-based voice control (optional). The integrated fingerprint recognition enables automatic switching between up to 45 user profiles. It also offers three operating modes (soft, standard, maximum speed) and a 9-channel design for maximum flexibility.
The H314 station is also the world's first desoldering station to combine thermal imaging technology with soldering technology. This enables users to achieve unprecedented soldering precision by monitoring the temperature of the soldering points and the entire workpiece at all times. (Optional)

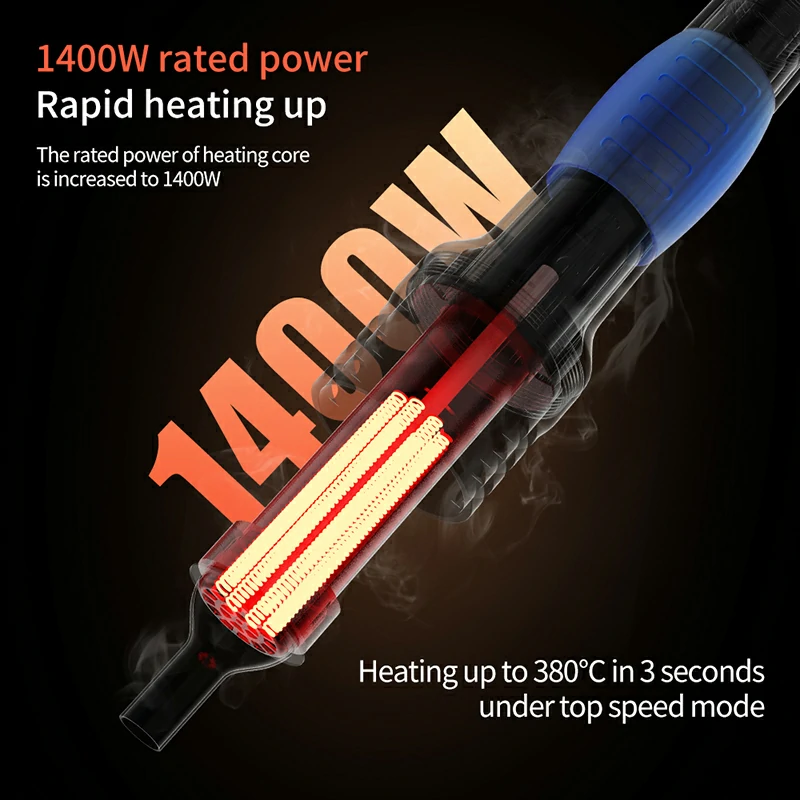

With a 1400 W heating core, it reaches 380 °C in just 3 seconds in top speed mode, increasing maintenance efficiency by reducing operating time.
The optional Bluetooth grip ring with very long battery life enables "blind" operation for channel change, temperature and air control including cold air mode, which further improves comfort and efficiency.
Features
- High-resolution 3.5-inch IPS display with integrated smart operating system
- Integrated fingerprint recognition for automatic switching between multiple user accounts - the world's first intelligent desoldering station with thermal imaging technology
- Wi-Fi and Bluetooth connectivity with OTA updates and support for AI-powered voice control
- Powerful 1400 W heating element, reaches 380 °C in just 3 seconds in high-speed mode
- Three operating modes (soft, standard, high-speed) and 9 channels; allows switching between 5 user accounts via fingerprint - memory capacity for up to 45 user profiles
- Flexible desoldering technology with selectable segment and curve control, storage of personal cloud data and support for app extensions
- Patented 3D air nozzle design combined with precise temperature control software and optimised air duct system
- Innovative spring lock of the air nozzle, prevents blocking when changing nozzles under high temperatures
Technical Data
| Device specification |  H314 |
|---|---|
| Rated power | 1400W |
| Temperature range | 100°C-500°C |
| Air flow control | 1 % - 150 % |
| Display | 3.5 inch IPS |
| Input voltage | 230 V~50 Hz |
| Interfaces | Type-C/WLAN/Bluetooth |
| Air flow | 15-50 m/s |
| Fan modes | Uniform airflow / Vortex airflow |
