Aixun iHeater Pro desoldering station for the repair of mobile device motherboards
Volume discounts on request!
€275.00 Net
€327.25 incl. VAT
Shipping country
Customer Group
Währung
Delivery time 1 month
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Customize your product!
Click on a category below to view available options.
Description

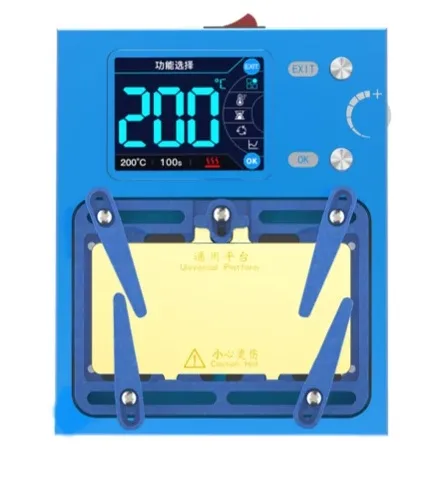

The AiXun iHeater Pro desoldering station is an advanced, intelligent preheating platform for repairing mobile device main boards. It has four full-surface holding clamps for fixing even deformed circuit boards. The station supports iPhone models from X to 14 Pro Max (14 series in preparation) as well as Android chips and CPUs. The platform works with zoned heat distribution and is ideal for precise soldering and desoldering work on multi-layer smartphone mainboards.
Features
- Support of mainboard repair for iP X-14 series
- Built-in mute fan, fast cooling, no damage to the motherboard
- Upgrade with full-angle buckle design, easy repair of deformed motherboards
- 2.4-inch HD display, temperature curve display, real-time temperature monitoring
- MCH ceramic heater with rapid heat-up function - reaches 200 °C in just 90 seconds
- Remote software upgrade through connection to the AiXun platform
Technical Data
| Device specification |  iHeaterPro |
|---|---|
| Rated power | 130W |
| Operating voltage | 110V-220V |
| Temperature range | 60℃-280℃ |
| Support for | iP X-14, Android |
| Dimensions | 140*110*39mm |
Documentation
Accessories
FT-90A magnifying glass & mounting stand for circuit boards
Product Nr.: FT-90A
The stand FT-90A facilitates precise soldering work by being able to enlarge the soldering point and fixing the board.
€17.85*
ST-1016 solder fume extraction
Product Nr.: ST-1016
The soldering fume extractor is used to extract soldering fumes at the soldering work station, easily replaceable activated carbon filters are used.
€46.41*
HR-2102A Heating element for St-862D
Product Nr.: HR-2102A
This 1000 watt heating element is compatible with the Atten ST-862D station.
€47.60*
Additional 45 degree nozzles
C-26127 45 degree nozzle
Product Nr.: C-26127
The Atten C-26127 is a nozzle for the ST-862D station that is angled at 45 degrees and is 12.7mm in diameter.
€11.90*
C-2687 45 degree nozzle
Product Nr.: C-2687
The Atten C-2687 is a nozzle for the ST-862D station that is angled at 45 degrees and has a diameter of 8.7mm.
€11.90*
C-2664 45 degree nozzle
Product Nr.: C-2664
The Atten C-2664 is a nozzle for the ST-862D station that is angled at 45 degrees and is 6.4mm in diameter.
€11.90*
PCbite brackets
4002 PCBite mounting kit (A5 base plate)
Product Nr.: PCBITE-4002
This Sensepeek 4002 PCBite PCB holder kit is perfect for holding your PCB for soldering or inspection.
€70.21*
4018 PCBite MSO 100 MHz Kit
Product Nr.: PCBITE-4018
This kit contains everything you need for hands-free measurements with your multimeter, logic analyser and oscilloscope.
Produkt abgekündigt
