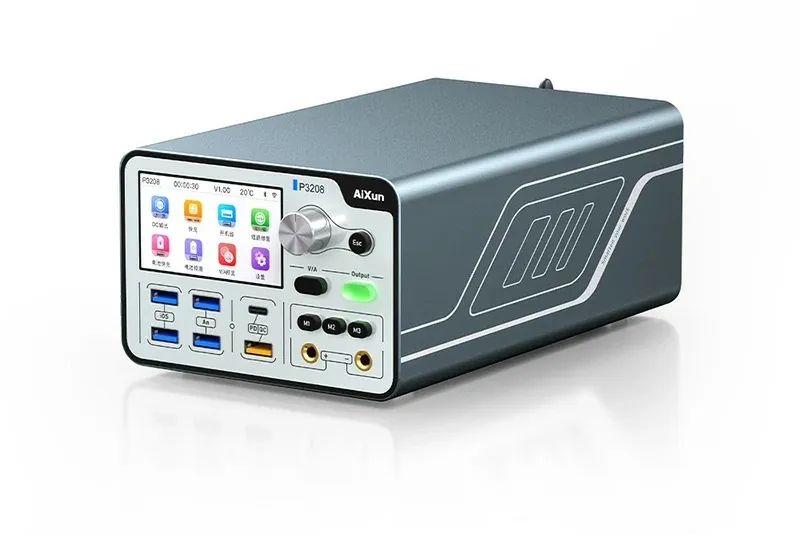

The Aixun P3208 laboratory power supply offers a maximum output of 320 watts.
Volume discounts on request!
€215.00 Net
€255.85 incl. VAT
Shipping country
Customer Group
Währung
Delivery time 1 month
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Customize your product!
Click on a category below to view available options.
Description

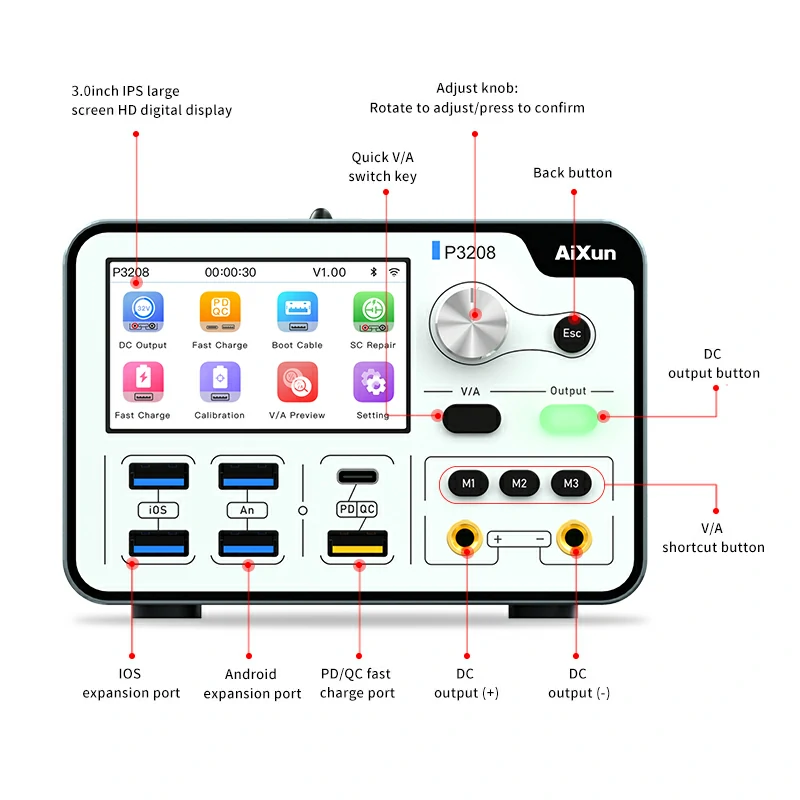

The P3208 is a laboratory power supply with a maximum output of 320 W and an adjustable output of up to 32 V at 8 A. The device features a Bluetooth/WLAN chip that can be used to conveniently install firmware and software updates. For fast charging processes, the device supports PD and QC protocols on both type A and type C outputs and delivers up to 60 W in one channel. The three-channel quick setting allows precise adjustment of current and voltage by simply pressing a button, while the 3.0-inch IPS HD display offers either a graphical curve or a pointer display for current and voltage values.
Features
- 320 watts maximum power
- Built-in Bluetooth WiFi chip, remote software upgrade through iCloud
- 60 W maximum charging power for single channel, 30 W maximum charging power for dual channel
- Current detection is accurate to 0.1 mA, switching curve or pointer display models at will
- Individual three-channel current and voltage linkage setting
- 3.0-inch IPS full HD display
Technical Data
| Device specification |  P3208 |
|---|---|
| Max. Fast charging power | 60W |
| Maximum power | 320 watts |
| Measurement resolution | 0.1mA |
| Output current | 0-8A |
| Input voltage | 220V/110V 50Hz |
| Fast charging protocols | PD, QC fast charging |
| Communication protocols | Type-C/WIFI/Bluetooth |
| Display | 3.0 inch IPS (640x360px) |
| Net weight | 1230g |
| Dimensions | 129*198.5*85MM |
