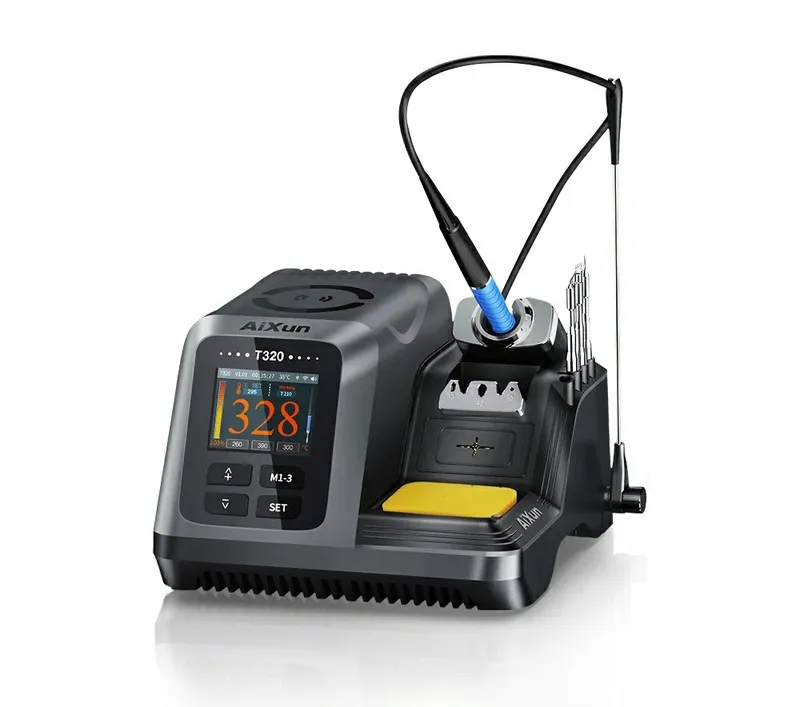

The Aixun T320-245 soldering station has 200 watts of power and is equipped with the T245 soldering iron.
Volume discounts on request!
€185.00 Net
€220.15 incl. VAT
Shipping country
Customer Group
Währung
Delivery time 1 month
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Customize your product!
Click on a category below to view available options.
Description
The T320 soldering station with the T245 soldering iron offers a maximum output of 200 watts and monitors the status of the soldering tip in real time with the intelligent soldering assistance system. The 100-240 V AC input with a wide voltage range avoids problems with low or unstable voltage. The innovative touch control of the soldering tip ensures more comfortable handling than the conventional cable control.Features
- 200 Watt maximum power, PID control
- Adaptation to AC 100-240V input voltage
- real-time monitoring of soldering status
- Compatible with the T210 and T245 soldering irons
- 2.4 inch HD display
- Smart temperature management system, fast heat-up in 2 seconds
- Real-time standby, extends the service life of the soldering tips
- Supports remote control and wireless Bluetooth/WIFI data transmission
- Smart soldering assistance system ensures real-time improvement of soldering quality
Technical Data
| Device specification |  T320 |
|---|---|
| Input voltage | AC 100-240V |
| Maximum power | 200 watts |
| Voltage range | 220V/110V |
| Temperature range | 90℃-450℃ |
| Display | 2.4 inch IPS HD display |
| Net weight | 1920g |
| Dimensions | 180*173*120.5mm |
