The Aixun T420D dual-channel soldering station has 200 watts of power
Volume discounts on request!
€425.00 Net
€505.75 incl. VAT
Shipping country
Customer Group
Währung
Delivery time 1 month
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Customize your product!
Click on a category below to view available options.
Description

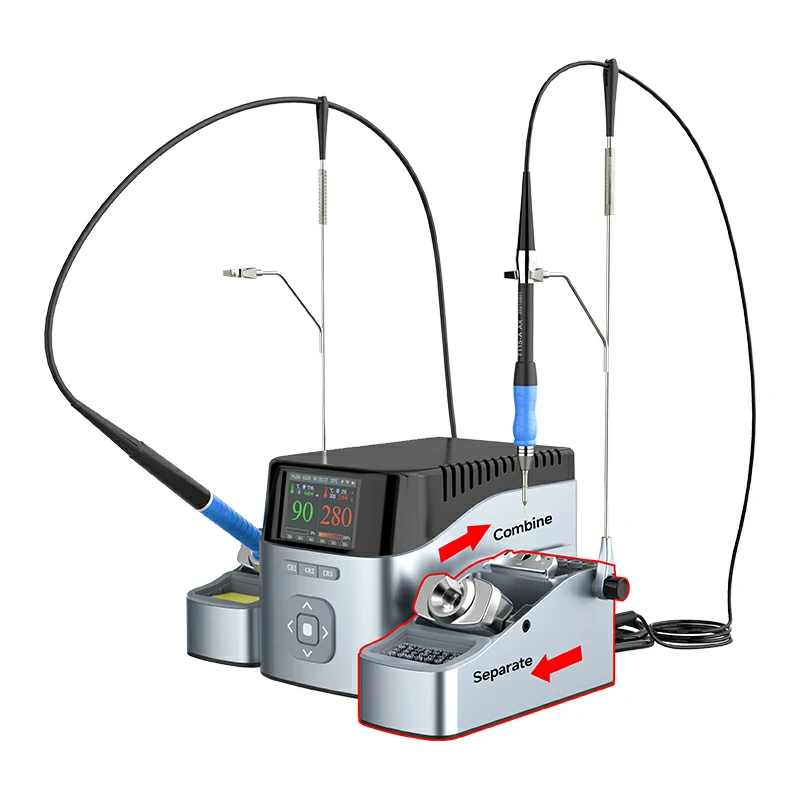

The T420D is a dual-channel soldering station with a maximum output of 200 watts.The station is compatible with three soldering irons T245, T210 and T115 and therefore fulfils a wide range of soldering requirements.
The large HD display facilitates temperature monitoring and fast heating to 380 °C within a few seconds saves an enormous amount of time.
Features
- Compatible with three soldering irons: T245 | T210 | T115
- 2 holders with 2 channels work together
- Compatible with JBC tips, 100% compliance with the speed of temperature rise and accuracy of temperature control
- 400W maximum power, fast heating up to 380℃ in 2 seconds
- Pure AC insulation
- Professional toroidal transformer ensures sufficient power
- Intelligent identification system helps to monitor the status of the handles
- Suitable for soldering large parts as well as high-precision components
- Supports remote upgrades on the PC, connection via WLAN for upgrades
Technical Data
| Device specification |  T420D |
|---|---|
| Rated power | 200 watts |
| Maximum power | 400 watts |
| Voltage range | 220V/110V |
| Fuse rating | 3A |
| Temperature range | 90℃-450℃ |
| Net weight | 4406g |
| Dimensions | 178.4*112*125 mm |
